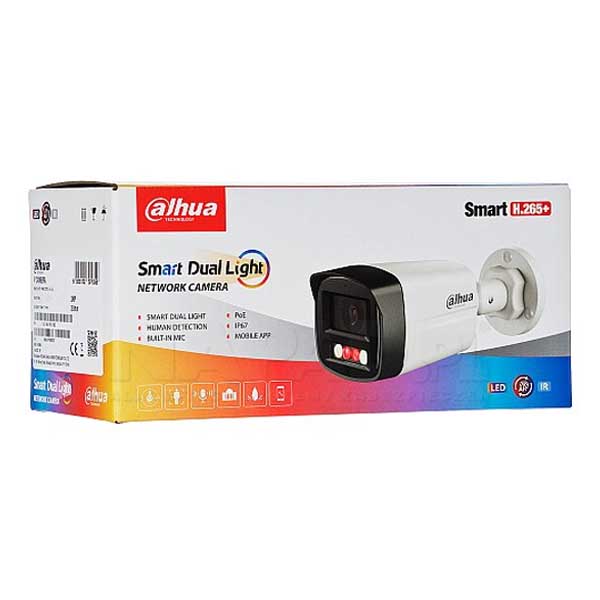

Dahua DH-IPC-HFW1239TL1-A-IL 2MP Smart Dual Light Bullet Network Camera

MAIN

Converter

1/2.8" 2MP image sensor, low illuminance, HD CMOS

Resolution

2Mpx, 1920 (H) x 1080 (V) pixels

RAM/ROM

128MB / 128MB

Scanning system

Progressive

Snapshot

Automatic/manual, 1/3s ~ 1/100000s

Signal to noise ratio

>56dB

Minimal lighting

0.005 Lux/F1.6 (Color, 30 IRE)
0.0005 Lux/F1.6 (B/W, 30 IRE)
0 Lux (IR / LED on)

Illuminator

2 IR LEDs (infrared)
2 white light LEDs (warm)

Illuminator range

IR: 30m
LED: 30m

Illuminator control - on / off

Automatic, manual

Illuminator operating modes (Smart Dual Light)

Smart Dual Light: The camera works based on IR illuminator. If an object is detected in the controlled zone, the illuminator switches to a white light LED.
IR mode: The camera only works with IR illuminator.
White Light Mode: The camera only functions with a white light LED illuminator.

Position adjustment

Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°

LENS

Type

Fixed focal length

Installation

M12

Focal length

2.8mm (F1.6)

Viewing angle

H: 104°
V: 55°
D: 124°

Aperture control

Constant

Macro mode (focus away)

0.8 m

DORI coverage

Detection: 44.1m
Observation: 17.7m
Reconnaissance: 8.8m
Identification: 4.4m


Video compression

H.265 / H.264 / H.264H / H.264B
MJPEG (sub stream)

Smart Codec

Yes (H.265+ / H.264+)

Concurrent number of video streams

2

Processing resolution

1080p - 2Mpx (1920x1080) / 960p - 1.3Mpx (1280x960) / 720p - 1Mpx (1280x720) / D1 (704x576 / 704x480) / CIF (352x288 / 352x240) / VGA (640x480)

Processing speed and resolution
(main stream)

PAL: 25fps @ 2Mpx
NTSC: 30fps @ 2Mpx

Processing speed and resolution
(auxiliary stream)

PAL: 25fps @ D1
NTSC: 30fps @ D1

Transmission speed control

Variable (VBR) / Fixed (CBR)

Bitrate

32Kbps ~ 4096Kbps (H.264)
12Kbps ~ 4096Kbps (H.265)

Day Night

Automatic (ICR) / color / black and white

Background compensation

BLC/HLC/DWDR

Gain control

Automatic (AGC), manual

Noise reduction

3D NO

White balance

Automatic (AWB) / outdoor / manual / natural light / street lamp / region

Motion detection

Yes (4 areas, rectangles)

Area of ​​Interest (Roi)

Yes (4 areas)

Smart lighting

Yes

Image rotation

0°, 90°, 180°, 270° (support 90°, 270° for 1920x1080 and lower resolution)

Mirror reflection

Support

Privacy zones

On / off (4 areas)

AUDIO

Compression

G.711a / G.711Mu / PCM / G.726

Microphone

Yes (built-in)

SMART FEATURES

SMD man

Human classification with false alarm filtering

Smart Search

Works with Smart NVR for accurate intelligent search, event extraction and merging into event videos

ALARM

INTERFACE

Ethernet

1x RJ45 10/100Mbps Base-T

DC 12V power supply

1x 5.5/2.1 socket on the cable

NETWORK

Supported protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P

Cyber ​​security

Video encryption, encryption configuration, WSSE, account lockout, IP/MAC filtering, security logs, cert generation and import. X.509, HTTPS, 802.1x, trusted execution, trusted update

SDK and API

Yes

Service

ONVIF (Profil S / Profil T), CGI, P2P

Online users

6 users (total bandwidth 24M)

Archiving

FTP

Support via web browsers

IE: IE9 and later versions
Chrome (version 41 or later versions)
Firefox (version 50 or later versions)

Remote control

Smart PSS, Smart PSS Lite, DSS, DMSS, P2P
mobile devices: iOS, Android
