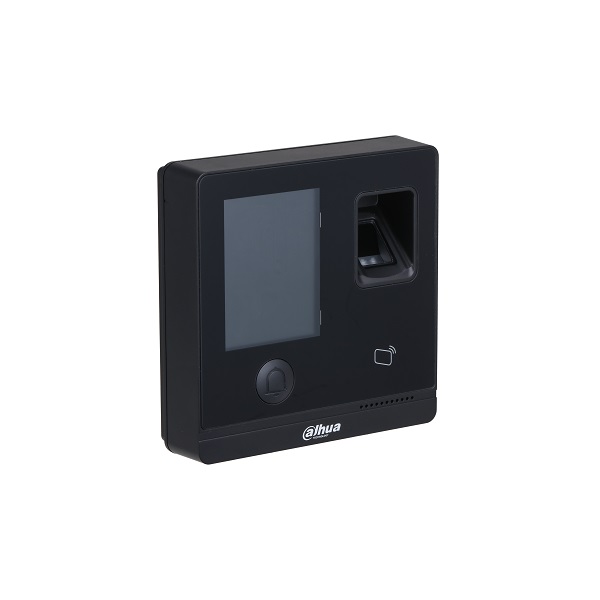

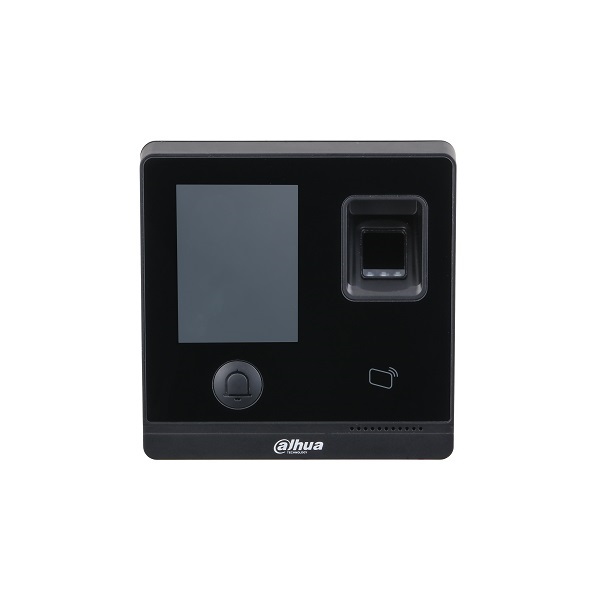

Dahua ASI1212F Access Standalone
> PC+ABS housing material, and glass material for front panel , applicable for indoor scenario
> 2.8 inch LCD touch screen display with resolution of 240×320
> Deep learning algorithm makes fingerprint recognition time 1.5 s
> Support card, fingerprint, password
> Support 30,000 users, 30,000 cards, 3,000 fingerprints, 150,000 records
> Support OSDP, TCP/IP
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Technical Specification | ||
Models | ASI1212F | ASI1212F-D |
System | ||
Main Processor | Embedded processor | |
Network Protocol | IPv4, TCP, P2P | |
Button Type | Touch button | |
OSDP Protocol | Yes (only supported as a host) | |
Basic | ||
Display | 2.8 inch TFT touch screen | |
Screen Type | Capacitive screen | |
Resolution | 240 (H) × 320 (V) | |
Voice Prompt | Yes | |
Buzzer | Yes | |
Housing Material | PC+ABS | |
Function | ||
Unlock Mode | Card/remote/password/fingerprint | |
Card Type | IC card | ID card |
Card Reading Frequency | 13.56MHz | 125KHz |
Period List | 128 | |
Holiday Period | 128 | |
Network Update | Yes | |
First Card Unlock | Yes | |
Remote Verification | Yes | |
Blocklist/Allowlist | Yes | |
Ads Broadcast | Support graphic advertisement play | |
Peripheral Card Reader | 1 RS-485, 1 Wiegand | |
Group Combination | Card/remote/password/fingerprint | |
Web Configuration on PC | Yes | |
Web Configuration on Mobile | Yes | |
Wi-Fi | Yes | |
Performance | ||
Card Reading Distance | 1 cm–3 cm (0.03 ft–0.10 ft) | |
Fingerprint Sensor Type | Optical fingerprint | |
Fingerprint Verification Mode | 1:N, 1:1 | |
Fingerprint Comparison Time | 1.5 s | |
Capacity | ||
User | 30,000 | |
Fingerprint | 3,000 | |
Card | 30,000 | |
Password | 30,000 | |
Record | 150,000 | |
Port | ||
RS-485 | 1 | |
Wiegand | 1 (input or output) | |
USB | 1 USB2.0 port | |
Network | One 10/100 Mbps self-adaptive network port | |
Alarm Input | 1 | |
Alarm Output | 1 | |
Alarm Linkage | Yes | |
Unlock Button | 1 | |
Door Status Detection | 1 | |
Lock Control | 1 | |
Alarm | ||
Anti-passback | Yes | |
Tamper | Yes | |
Duress | Yes | |
Door Sensor Timeout | Yes | |
Intrusion | Yes | |
Illegal Card Exceeding Threshold | Yes | |
Duress Fingerprint | Yes | |
General | ||
Power Supply | DC 12V 1A | |
Power Consumption | ≤ 4.0W (standby), ≤ 6.0W (working) | |
Dimensions (H×W×D) | 114.5 mm × 114.5 mm × 32.5 mm (4.51”× 4.51”× 1.28”) | |
Packing Dimensions (H×W×D) | Packing box: 187 mm ×164 mm ×72 mm (7.36"× 6.46"× 2.83") (23.03"× 15.35"× 14.17") | |
Operating Temperature | -10°C to +45°C (14°F to 113°F) | |
Operating Humidity | 5%RH-90%RH (no condensation) | |
Operating Environment | Indoor | |
Gross Weight | 415.0 g (0.91 lb) | |
Installation | Surface mount, flush mount, 86 case mount | |
Certifications | CE, FCC | |
