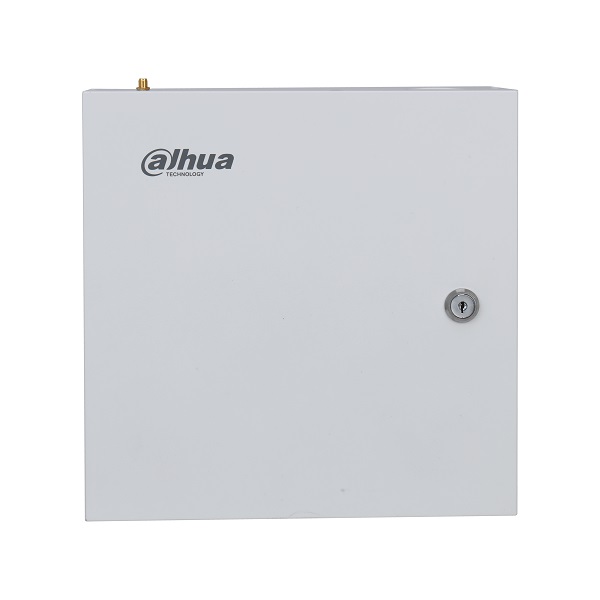

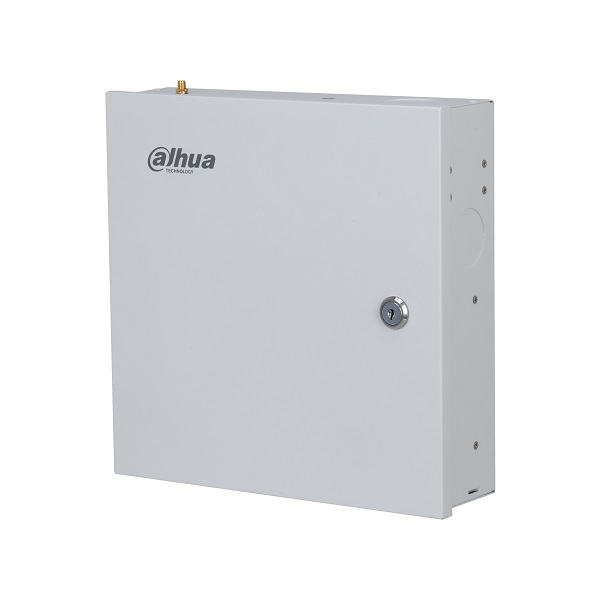

Dahua DHI-ARC9016C-V3 Alarm Controller
> 16-channel local alarm input (expandable to 256 channels); supports NO/ NC detector, detector tamper, short circuit and mask alarm.
> 4 channel alarm outputs (expandable to 256 channels), along with forced start/shutdown, auto control, and alarm linkage.
> Multiple zone types, such as instant zone, delayed zone, and 24-hour silent zone.
> Alarm input/output port circuit protection.
> Supports fault alarms, including controller tamper alarm, keypad tamper alarm, power failure alarm, battery failure alarm, battery undervoltage alarm, PSTN offline alarm, network disconnection alarm, IP conflict alarm, and MAC conflict alarm.
> 2-channel RS-485 ports; up to 32-channel keypads; printer connection.
> Emergency alarms, such as fire, medical and duress alarm.
> CID (Contact ID Protocol); reuses landline telephone port (personal call requires customized PSTN hardware module).
> Configuration method includes keypad and web; quick configuration guide; remote configuration and search.
> Up to 8 subsystems; single zone and subsystem arming/disarming; arming/disarming with keypad, keyfob, IC card and other methods.
> Supports 3 alarm receiving center at the same time, supports 3 different alarm reporting strategies.
> High-volume log search function.
> Remote update.
> Multiple device recovery methods.
> Two Ethernet ports and two wired alarm centers.
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications
Input/Output | |
Alarm Input | 16 x channel local inputs (expandable to 256 channels) |
Alarm Output | 4 x channel local outputs (expandable to 256 channels) |
Interface | |
Network Port | 2 × RJ–45 10/100 self-adaptive Ethernet ports |
Telephone Line | 1-ch PSTN |
Keyboard | 32 × LCD keypads |
Remote Control | 32 × ARA24-W2 |
Storage Battery | 1 × port (battery: 12 VDC/7 Ah) |
RS-232 | 1 |
Indicator Light | 3 × function indicators |
Button | 1 × forced start button; 1 × default jumper; 1 × factory default jumper |
RS-485 | 2 (keypad, expansion module, and printer) |
M-BUS | 2-ch M-Bus expansion (communication distance of up to 2.4 km for each channel) |
Buzzer | 1 |
Function | |
Tamper Alarm | Controller tamper; housing tamper |
Auxiliary Power Output | 1 × 12 VDC, 1 A |
Network Protocol | TCP/IP, DHCP, static IP |
Remote Update | Yes |
Arm and Disarm | Keypad; keyfob; IC card; web; platform |
Log | 20,000 |
Power Failure Protection for Configured Parameters | Yes |
Search Remote Alarm Event | Yes |
User Management | 64 network users and 200 keypad users |
Access Configuration | Keypad; web |
Search | Configurations; system logs; zone faults; system faults; program versions |
Language | English, Russian, Latin American Spanish, and Arabic |
General | |
Power Supply | 100–240 VAC, 50/60 Hz |
Power Consumption | Idling: 5 W |
Operating Environment | –10 °C to +55 °C (+14 °F to +131 °F) |
Product Dimensions | 275 mm × 74.8 mm × 275 mm (10.83" × 2.94" × 10.83") (L × W × H) |
Packaging Dimensions | 375 mm × 155 mm × 312 mm (14.76" × 6.10" × 12.28") (L × W × H) |
Installation | Wall mount |
Net Weight | 2.1 kg (4.63 lb) |
Gross Weight | 2.5 kg (5.51 lb) |
Certifications | FCC; CE |
