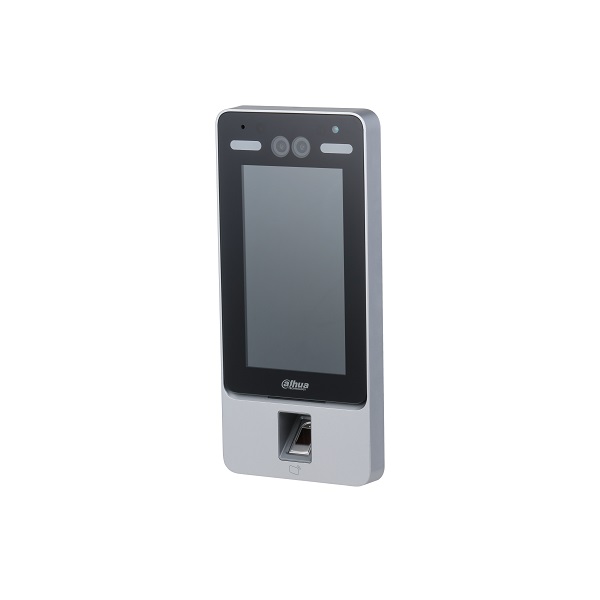

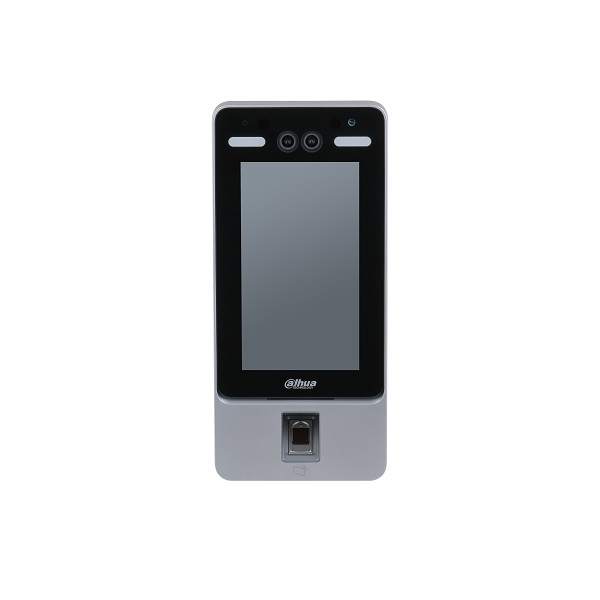

Dahua ASI7214Y-V3 Face Recognition Access Controller
> 7 inch IPS display, resolution 1024×600
> Support face unlock, fingerprint unlock, IC card unlock, and password unlock; unlock by period
> With face detection box; the largest face among faces that appear at the same time is recognized first; the maximum face size can be configured on the web
> 2MP wide-angle WDR lens; with auto/manual fill light
> Face-camera distance: 0.3 m–2.0 m; human height: 0.9 m–2.4 m
> With face recognition algorithm, the access controller can recognize more than 360 positions on human face
> Face verification accuracy>99.5%; face comparison speed 0.35s per person; low false recognition rate
> Support profile recognition; the profile angle is 0°–90°
> Holds 50, 000 users, 50, 000 faces, 10, 000 fingerprints, 50, 000 cards, 50, 000 passwords, and 50 administrators
> Support liveness detection
> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm , and more
> Support general users, patrol users, VIP users, guest users, and the disabled users
> With 4 unlock status display modes
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
System | |
Main Processor | Embedded Processor |
Internet Protocol | IPv4, RTSP, RTP, TCP, UDP, P2P |
OSDP Protocol | Yes |
Interoperability | CGI |
SDK and API | Support SDK |
Basic | |
Display | 7 inch IPS |
Screen Type | Capacitive touch screen |
Resolution | 600(H)×1024(V) |
Camera | 2 MP CMOS camera |
WDR | 120dB |
Light Compensation | Auto white light |
Status Indicator | 1 indicator light. Red: Error; Green: Normal; Blue: Working. |
Voice Prompt | Yes |
Housing Material | PC+ABS |
Function | |
Unlock Mode | Fingerprint/card/remote/password/face unlock and unlock through their combinations |
Card Reading Type | IC card |
Period List | 128 |
Holiday Period | 128 |
First-Card Unlock | Yes |
Remote Verification | Yes |
Peripheral Card Reader | 1 RS-485, 1 Wiegand |
Multiple Card Authentication | Yes |
Real-Time Surveillance | Yes |
Web Configuration | Yes |
Performance | |
Card reading distance | 1cm–5cm |
Face Recognition Range | Face-camera distance: 0.3 m–2.0 m; |
Face Verification Accuracy | >99.5% |
Face Recognition Time | 0.35s |
Fingerprint Sensor Type | Capacitive |
Fingerprint Verification Method | 1:N |
Fingerprint Comparison Time | ≤1.5s |
Capacity | |
User Capacity | 50, 000 |
Face Image Capacity | 50, 000 |
Fingerprint Capacity | 10, 000 |
Card Capacity | 50, 000 |
Password Capacity | 50, 000 |
Record Capacity | 100, 000 records |
Port | |
RS-485 | 1 |
RS-232 | 1 |
Wiegand | 1 input/output |
USB | 1 USB2.0 port |
Ethernet | 1 10M/100M Ethernet Port |
Alarm Input | 2 (Switch quantity) |
Alarm Output | 2 (Relay) |
Alarm Linkage | Yes |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1 |
Alarm | |
Anti-Passback | Yes |
Tamper Alarm | Yes |
Duress | Yes |
Door Sensor Timeout | Yes |
Intrusion | Yes |
Illegal Card Exceeding Threshold | Yes |
Duress Fingerprint | Yes |
General | |
Power Supply | Provided |
Power Supply Mode | DC 12V 2A |
Power Consumption | 12W |
Production Dimensions | 283.0mm×130.0mm×36.9mm (11.14"×5.12"×1.45") |
Packaging Dimensions | Controller packaging: 380mm×235mm×124mm (14.96"×9.25"×4.88") |
Working Temperature | -10°C to +55°C (+14°F to +131°F ) |
Working Humidity | 0%RH–90%RH (non-condensing) |
Working Environment | Indoor |
Gross Weight | 1.8kg (3.97 lb) |
Installation Method | Wall mounted |
Certifications | CE/FCC |
