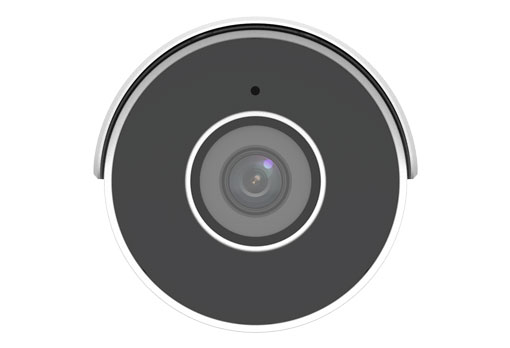

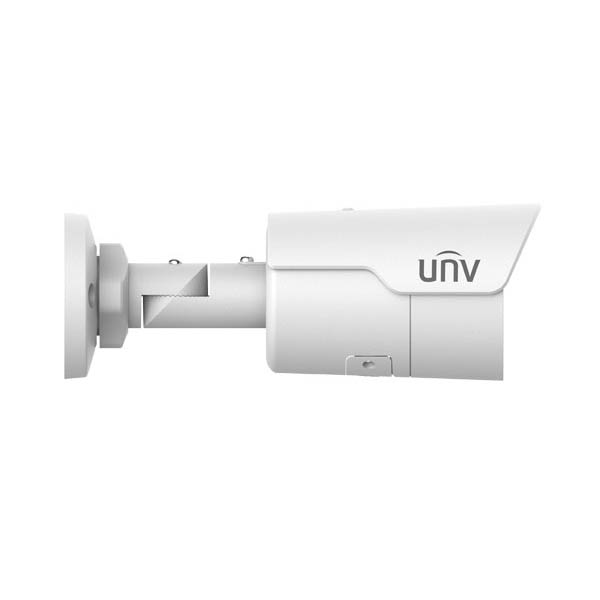

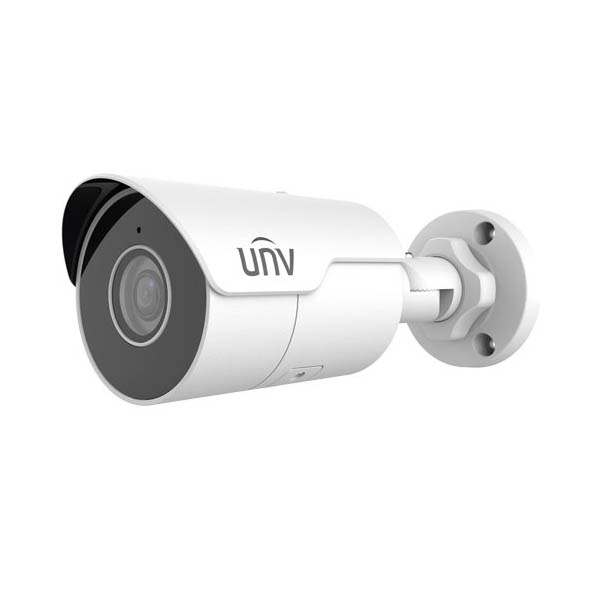

Uniview IPC-2124LR5-DUPF40 4MP Bullet IP Camera
Key Features
> Model- IPC-2124LR5-DUPF40
> Day/night functionality
> Smart IR, up to 50m (164ft) IR distance
> Optical glass window with higher light transmittance
> IR anti-reflection window to increase the infrared transmittance
> 2D/3D DNR (Digital Noise Reduction)
> Ultra 265, H.265, H.264
> ROI (Region of Interest)
> ONVIF Conformance
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications
| IPC2124LR5-DUPF28M-F
| IPC2124LR5-DUPF40M-F
| ||||||
Camera
| ||||||||
Sensor
| 1/3", 4.0 megapixel, progressive scan, CMOS
| |||||||
Lens
|
|
| ||||||
DORI Distance
| Lens (mm)
| Detect (m)
| Observe (m)
| Recognize(m)
| Identify(m)
| |||
2.8
| 63
| 25.2
| 12.6
| 6.3
| ||||
4.0
| 90
| 36
| 18
| 9
| ||||
Angle Of View (H)
| 105.3°
| 79.7°
| ||||||
Angle Of View (V)
| 57°
| 41.6°
| ||||||
Angle Of View(O)
| 136.9°
| 98.0°
| ||||||
Adjustment Angle
| Pan: 0° ~ 360°
| Tilt: 0° ~ 90°
| Rotate: 0° ~ 360°
| |||||
Shutter
| Auto/Manual, 1 ~ 1/100000s
| |||||||
Minimum Illumination
| Colour: 0.005Lux ( F1.6, AGCON)
0Lux with IR
| |||||||
Day/Night
| IR-cut filter with auto switch(ICR)
| |||||||
Digital NoiseReduction
| 2D/3D DNR
| |||||||
S/N
| >52dB
| |||||||
IR Range
| Up to 50m (164ft)IR range
| |||||||
Wavelength
| 850nm
| |||||||
IR On/OffControl
| Auto/Manual
| |||||||
Defog
| Digital Defog
| |||||||
WDR
| 120db
| |||||||
Video
| ||||||||
Video Compression
| Ultra 265,H.265, H.264, MJPEG
| |||||||
H.264 Code Profile
| Baseline profile, MainProfile, High Profile
| |||||||
Frame Rate
| Main Stream: 4MP (2688*1520), Max 25fps; Sub Stream: 720P(1280*720), Max 25fps
| |||||||
Video Bit Rate
| 128 Kbps~16 Mbps
| |||||||
OSD
| Up to 4 OSDs
| |||||||
Privacy Mask
| Up to 4 areas
| |||||||
ROI
| Up to 4 areas
| |||||||
Motion Detection
| Up to 4 areas
| |||||||
| ||||||||
White Balance
| Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
| |||||||
Digital noisereduction
| 2D/3D DNR
| |||||||
Smart IR
| Support
| |||||||
Flip
| Normal/Vertical/Horizontal/180°
| |||||||
Dewarping
| Support
| |||||||
HLC
| Supported
| |||||||
BLC
| Supported
| |||||||
Network
| |
Protocols
| IPv4, IGMP, ICMP,ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP,HTTP, HTTPS, SMTP,SSL
|
CompatibleIntegration
| ONVIF (Profile S, Profile T), API
|
Client
| EZStation EZView EZLive
|
Web Browser
| Plug-in required live view: IE9+,Chrome 41 and below, Firefox 52 and below
|
Plug-in free liveview: Chorme 57.0+,Firefox 58.0+, Edge 16+,Safari 11+
| |
Interface
| |
Network
| 10/100M Base-TX Ethernet
|
Certifications
| |
Certifications
| CE: EN 60950-1
UL: UL60950-1 FCC:FCC Part 15
|
General
| |
Power
| DC 12V±25%, PoE (IEEE 802.3af)
|
Power consumption: Max 6W
| |
Dimensions(L × W × H)
| 191.3×72.6×70.9mm (7.5”×2.9”×2.8”)
|
Net Weight
| 0.5kg (1.1lb)
|
Material
| Metal
|
Working Environment
| -30°C ~ 60°C(-22°F ~ 140°F),Humidity: ≤95% RH (non-condensing)
|
Strorage Environment
| -30°C ~ 60°C(-22°F ~ 140°F),Humidity: ≤95% RH (non-condensing)
|
Surge Protection
| 2KV
|
Ingress Protection
| IP67
|
