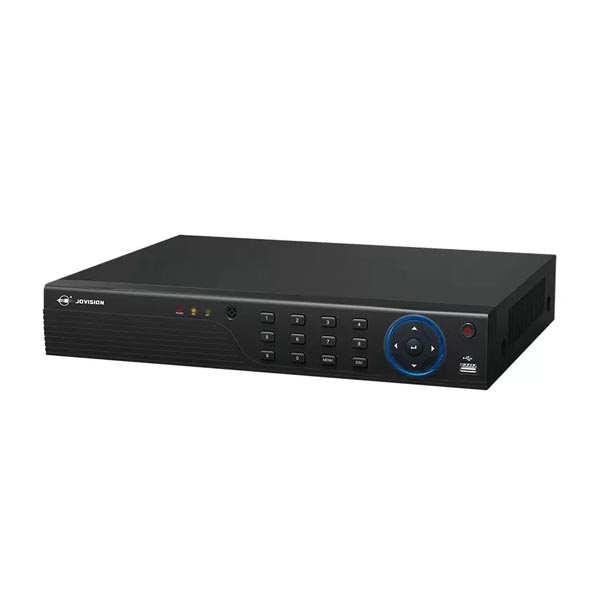

Jovision JVS-XD2832-HE20K 32 Channel XVR

Video and Audio

Analog Camera Input

32CH, BNC

HDCVI Camera

1080p@25/30fps, 720p@25/30fps

AHD Camera

4MP, 1080p@25/30, 720p@25/30fps

TVI Camera

1080p@25/30, 720p@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

Up to 1080P

Video Port Configuration

Full HD: 32CH

Hybrid: 16CH+16CH

Full Network: 32CH

Audio In/Out

8/1, RCA

Two-way Talk

1CH RCA

Recording

Compression

H.264+/H.264

Resolution

4M-N, 1080N, 720p, WD1

Record Rate

Main Stream: 4M-N(1~8fps), 1080N(1~18fps), 720P/960H/D1(1~18fps）

Sub stream: D1/CIF(1~8/12fps)

Record Mode

Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP),

 Alarm Device

Audio Compression

G.711U

Display

Interface

1x HDMI, 1x VGA

Resolution

1280x1024, 1024x768, 1280x800, 1440x900, 1920x1080

OSD

Device ID, Time, Record Setting, Alarm Setup, Audio,Camera Title

Network

Interface

1 RJ45 Port (100M)

Network Function

TCP/IP, DHCP, DNS, DDNS, HTTPS, HTTP,

Smart Phone

iPhone, Android

Interoperability

ONVIF 2.4

Playback and Backup

Playback

8ch 4.0MP/16ch 2.0MP

Search Mode

Time /Date, Alarm, MD, IVP, Auto, Scheduled

Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play,Fast Forward, Slow, Step, Snap

,Sound ON/OFF, Zoom,Backup to U-Disk

Backup Mode

USB

HDD

Interface Type

2 SATA Interface

Capacity

Up to 6 TB

General

Power Supply

DC12V

Consumption

≤ 20W

Working Temperature

00C~ 550C

Working Humidity

10% to 90%

Dimensions

405x338x135mm

Weight

≤ 3Kg
