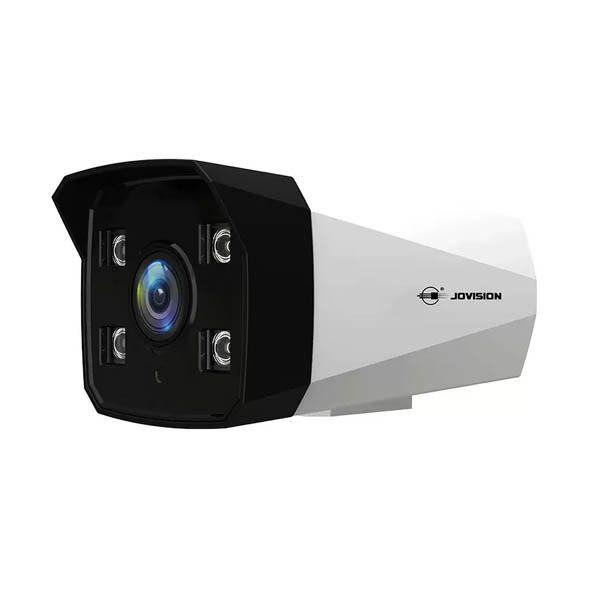

Jovision JVS-N916-KDL-PE 3MP Full Color Audio PoE IP Camera

Video

Image Sensor

1/2.9" CMOS Sensor

Max Resolution

2304x1296

Effective Pixels

3.0MP

Compression Standard

H.265/H.264

Frame Rate

25fps

Bit Rate

204Kbps~5Mbps

SNR (dB)

52dB

Min. Illumination

0Lux (fill light ON)

Lens

Lens

4mm,8mm (M12)

Fill light

4x double wick filling lamp (infrared/warm)

Fill light distance

Up to 40 Meters

Function

Exposure Control

Auto

White Balance

Auto

Gain control

Auto

Image Enhancement

3D DNR

Advanced OSD

Support OSD large font function, OSD flashing on alarm, OSD and time to

 set the position separately

Motion Detection

Support human detection (default does not mark the human box)

Image Setting

Rotate, Saturation, Brightness, Contrast, Sharpness

Day and night function

Day and night automatic switching

Privacy Mask

Support up 8 areas

Intelligent Analysis

Not Support

Alarm Method

 Email Alarm,Client Alarm

Remote Operation

System , Audio and video , Image , Alarm , Network management

Expansion Interface

Built-in MIC

Network

Ethernet

10M / 100M Ethernet ,1 RJ45

Stream

2x Streams

Protocols

HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS

ONVIF

standard ONVIF

Network transmission

CloudSEE 2.0

Browser

IE8+, Chrome18+, Firefox5.0+, Safari5.02+

User

Up to 13 Users

App

Support iOS/Android

General

Power Supply

DC12V/2A

Power Consumption

<3W (During day); <6W (At night)

Working Temperature

-20°C ~ 60°C

Working Humidity

10% ~ 90% Rh

Material

 Plastic

Dimensions (WxHxD)

178*85*85(mm)

Weight

440g

Waterproof

IP67
