Key Features

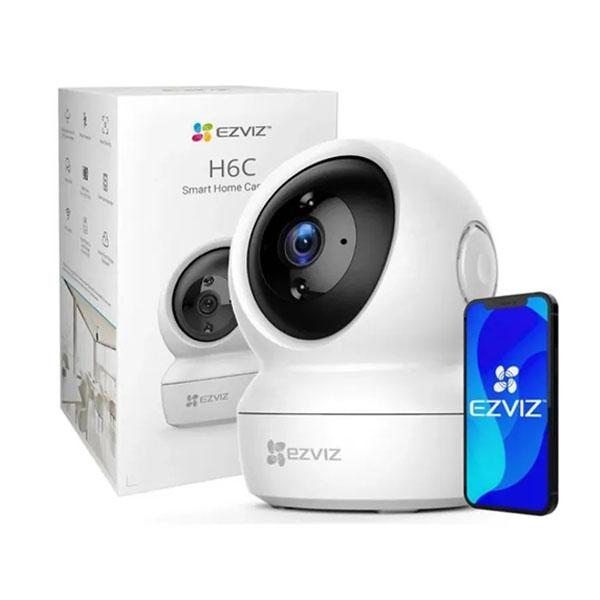

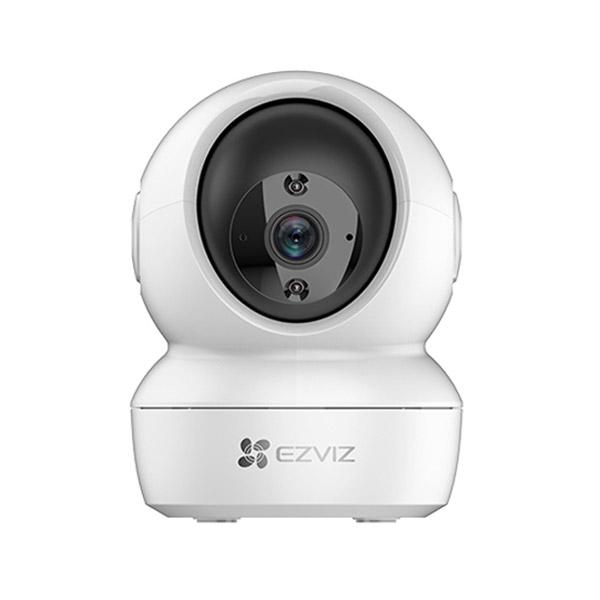

> Model: CS-H6C
> Image Sensor: F2.4 @ 1/3" Progressive Scan CMOS
> Video Resolution: 2MP - 1920 x 1080p
> IR Night Vision Distance: Up to 10 m (33 ft)
> Smart Human Motion Detection
> Power Supply DC 5V/1A
Wed - Mon: 10AM - 07PM
Specifications:
Model | CS-H6c-R101-1G2WF |
---|---|
Image Sensor | F2.4 @ 1/3" Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
IR Night Vision Distance | Up to 10 m (33 ft) |
Lens | 4 mm, viewing angle: 85° (Diagonal), 75° (Horizontal), 45° (Vertical) |
Lens Mount | M12 |
DNR | 3D DNR |
WDR | Digital WDR |
Day & Night Switch | IR-cut filter with auto-switching |
Max. Resolution | 1080p, 1920 × 1080 |
Frame Rate | Max. 15 fps; Self-Adaptive during network transmission |
Video Compression | H.264 |
Video Bit Rate | Quad HD, Full HD, HD, Standard. Adaptive bit rate. |
Local Storage | Supports microSD card (Up to 256 GB) |
Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
Wi-Fi Standard | IEEE 802.11 b, 802.11 g, 802.11 n |
Frequency Range | 2.4 ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps |
Wi-Fi Pairing | AP paring |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
Dimensions | 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in) |
Packaging | 103 × 103 × 186 mm (4.06 × 4.06 × 7.30 in) |
Net Weight | 218 g (7.69 oz) |
Operating Conditions | -10° to 45° C (14° to 113° F) Humidity 95% or less (non-condensing) |
Power Supply | DC 5V / 1A |
Power Consumption | Max. 5 W |
