Key Features

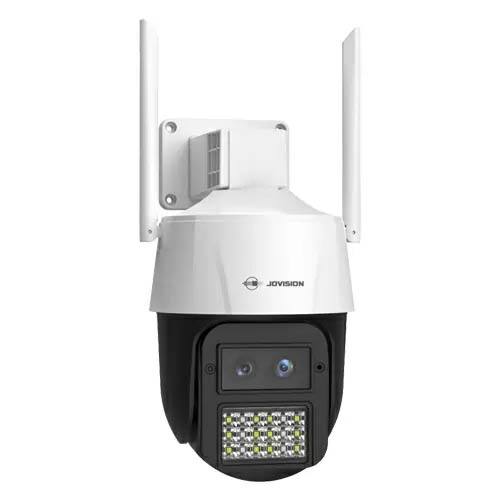

> Model-JVS-N98-X3
> Bnocular Zoom Lens, 3MP Ultra-clear Image Quality
> 18x LED lights, Dual Light Sources for Supplementary Lighting
> Built-in speaker + MIC, Two-way Voice Intercom
> Support Warm Light, Infrared, Intelligent Dual Light, Sound and Light Warning Modes
> Support Wi-Fi Connection, Wired Connection and AP Connection
> Support Humanoid Detection, Humanoid Tracking
> Support SD Card, Maximum Support 512GB
> Support Region Intrusion, Line Crossing, Leave Detection, Road Occupation
Wed - Mon: 10AM - 07PM
Specifications
Video | |
Image Sensor | 1/2.9" CMOS Sensor |
Max Resolution | 2304x1296 |
Effective Pixels | 3.0MP |
Compression Standard | H.264/H.265(Default) |
Frame Rate | 25fps |
Bitrate | Main Stream: 128Kbps ~ 4096KbpsSub Stream: 68Kbps~1024Kbps |
SNR (dB) | 50dB |
Min. Illumination | 0Lux (light ON) |
Lens | |
Interface Type | M12 |
Lens | 4-12mm |
FOV | Wide Angle: H 78.5°, V 42.8°, D 92.6°; Telephoto: H 19.4°, V 10.9°, D 21.8° |
Function | |
Audio Codec | G.711U/G.711A (Default) |
Exposure Control | Auto |
White Balance | Auto |
Gain Control | Auto |
Digital 3D Noise Reduction | Support |
OSD Information Setting | Large Font OSD, OSD Flashing on Alarm, OSD Position Settings |
SNTP | Support |
Schedule Reboot | Support |
Smart Defog | Support |
Motion Detection | Support Humanoid Detection |
Image Setting | Support Saturation, Brightness, Contrast, Sharpness Adjustment |
Image Style | Standard, Soft, Transparent |
Day and Night Function | Automatic Switching, Timing Switching, Day Mode, Night Mode |
Privacy Mask | A Single Screen Supports 8 Privacy Masks, And Supports Up To 24 Masking Areas |
Night Vision Optimization | Support |
DWDR | Support |
Screen Settings | Screen Mirroring, Screen Flipping |
IP Adaptation | Support Automatic Adaptation of IP Address |
Intelligent Analysis | Support Region Intrusion, Line Crossing, Leave Detection, Road Occupation |
Alarm Method | Email Alarm, Client Alarm |
Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
Audio Function | Built-in Mic and Speaker |
SD Card | Support(512GB) |
Reset Button | Support |
Network | |
Ethernet | 10/100Mbps Ethernet |
Stream | 2x Streams |
Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
ONVIF | Standard ONVIF |
Network Transmission | CloudSEE 2.0 |
Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
User | Up to 13 Users |
App | Support iOS/Android |
General | |
Lights | 12 White LEDs + 6 IR LEDs |
Fill Light Distance | White LED:50 MetersIR LED:40 Meters |
Waterproof Level | IP66 |
Power Supply | DC12V/2A |
Power Consumption | <6W (During Day); <15W (At Night) |
Working Temperature | -20°C ~ 60°C |
Working Humidity | 10% ~ 90% Rh |
Color/Material | White/Black; Plastic/Front Shell Aluminum Alloy |
Dimensions (WxHxD) | 160x257x187mm |
Weight | 770g |
Installation Method | Wall Or Ceiling Mount |
