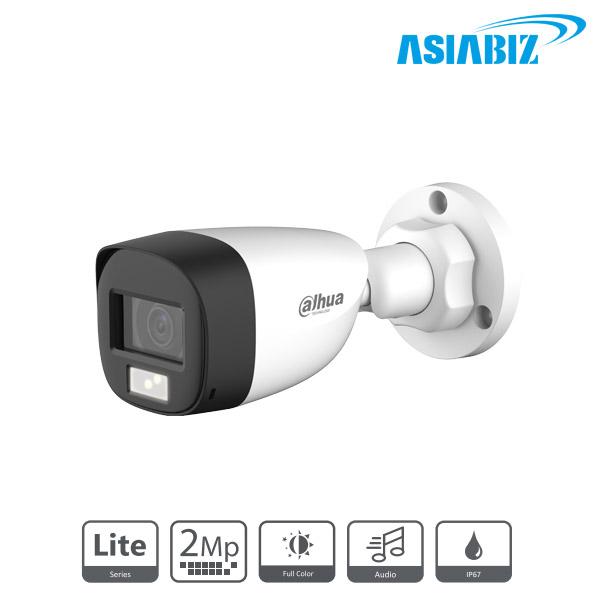

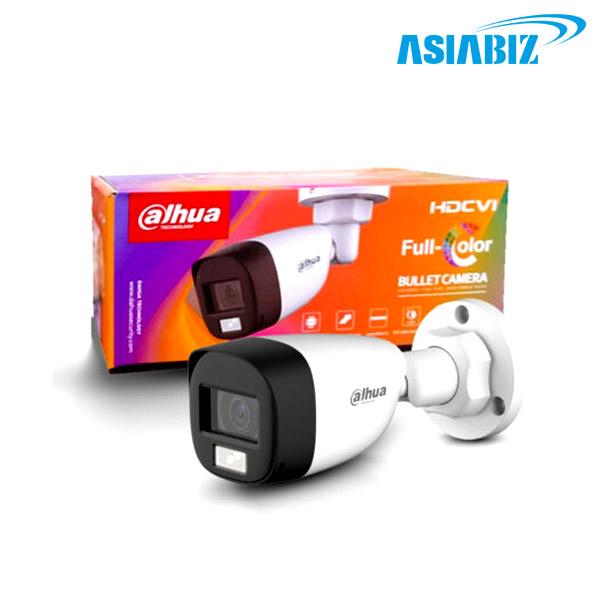

Dahua HAC-HFW1209CLP-A-LED 2MP Full color HDCVI Bullet Camera

Camera

Image Sensor

2MP CMOS

Effective Pixels

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.005 lux@F1.6 (Color) 0 lux (Illuminator on)


S/N Ratio

More than 65dB

IR Distance

20 m (65.62 ft)


IR On/Off Control

Auto / Manual

IR LEDs

1


Lens

Lens Type

Mount Type

Focal Length

3.6mm (2.8mm Optional)

Max Aperture

F1.6

Angle of View

2.8 mm: H: 108°; V: 58°; D: 127°

3.6 mm: H: 84°; V: 43°; D: 102°

Focus Control

N/A

Close Focus Distance

2.8 mm: 0.7 m (2.3 ft)


3.6 mm: 1.3 m (4.27 ft)

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

2.8mm

3.6mm

Detect

42.2 m (138.45 ft)

59.0 m (193.57 ft)

Observe

16.9 m (55.45 ft)

23.6 m (77.43 ft)

Recognize

8.4 m (27.56 ft)

11.8 m (38.71 ft)

Identify

4.2 m (13.78 ft)

5.9 m (19.36 ft)
