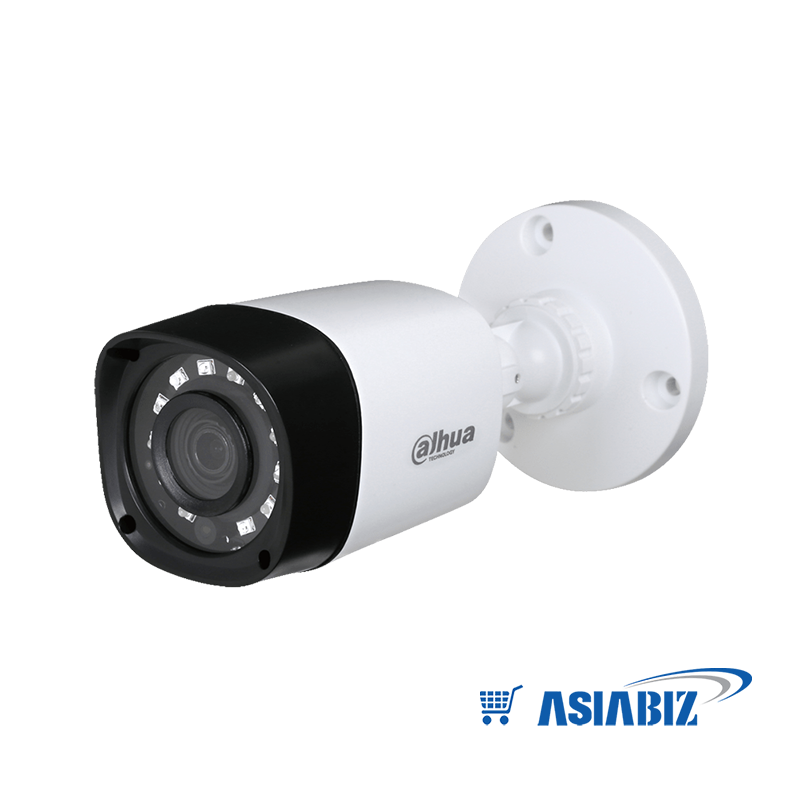

Dahua HAC-HFW1200R 2MP HDCVI IR Bullet Camera
Key Features
> Max 30fps@1080P
> HD and SD output switchable
> 3.6mm fixed lens
> Max. IR length 20m, Smart IR
> IP67, DC12V
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Effective Pixels | 1920(H)×1080(V), 2MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s | ||||
| S/N Ratio | >65dB | ||||
| Minimum Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on | ||||
| Fill Light Working Distance | 20 m (65.6 ft) | ||||
| IR On/Off Control | Auto; manual | ||||
| IR LED Number | 12 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||
| Max. Aperture | F1.9 | ||||
| Field of View | 2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) (diagonal x horizontal x vertical) | ||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.7 ft) 3.6 mm: 0.8 m (2.6 ft) 6 mm: 2 m (6.6 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 38.6 m (126.6 ft) | 15.4 m (50.5 ft) | 7.7 m (25.3 ft) | 3.9 m (12.8 ft) | |
| 3.6 mm | 49.7 m (163.1 ft) | 19.9 m (65.3 ft) | 9.9 m (32.5 ft) | 5 m (16.4 ft) | |
| 6 mm | 82.8 m (271.7 ft) | 33.1 m (108.6 ft) | 16.6 m (54.5 ft) | 8.3 m (27.2 ft) | |
| Video | |||||
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H | ||||
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/DWDR | ||||
| WDR | DWDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D NR | ||||
| Smart IR | Yes | ||||
| Electronic Defog | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 3.1W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Plastic throughout the whole casing | ||||
| Camera Dimensions | 154.3 mm × 69.8 mm × 69.8 mm ( 6.07" × 2.75" × 2.75" ) | ||||
| Net Weight | 0.15 Kg (0.33 lb) | ||||
| Gross Weight | 0.22 Kg (0.49 lb) | ||||
