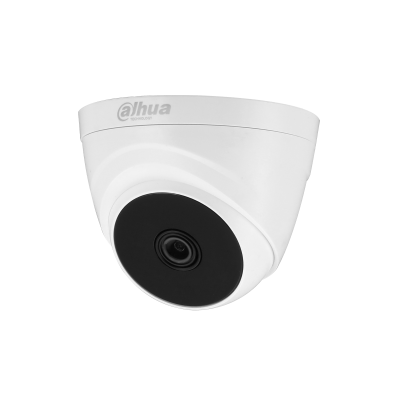

Dahua HAC-T1A51 5MP HDCVI Dome Camera

PAL: 1/25–1/100000 s

NTSC: 1/30–1/100000 s

2.8 mm: 125° × 106° × 56°

(diagonal × horizontal × vertical)

3.6 mm: 104° × 88° × 46°

(diagonal × horizontal × vertical)

2.8 mm: 0.8 m (2.6 ft)

3.6 mm: 1.2 m (3.9 ft)

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

5.6 m

(18.4 ft)

80 m

(262.5 ft)

32 m

(105.0 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Pan: 0° – 360°

Tilt: 0° – 78°

Rotation: 0° – 360°

5M (2880 × 1620); 4M (2560 × 1440);

1080P (1920 × 1080);960H (960 × 576/960 × 480)

CVI:

PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps

NTSC:5M@25 fps; 4M@30 fps; 1080P@30 fps

AHD:

PAL:4M@25 fps;

NTSC:4M@30 fps;

TVI:

PAL:4M@25 fps;

NTSC:4M@30 fps;

CVBS:

960H;

CE (EN55032, EN55024, EN50130-4,EN60950-1,

EN 62368-1:2014+A11:2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

–40°C to +55°C (–40°F to +131°F) /Less than 95% RH

*Start up should be done at above –40°C (–40°F)
