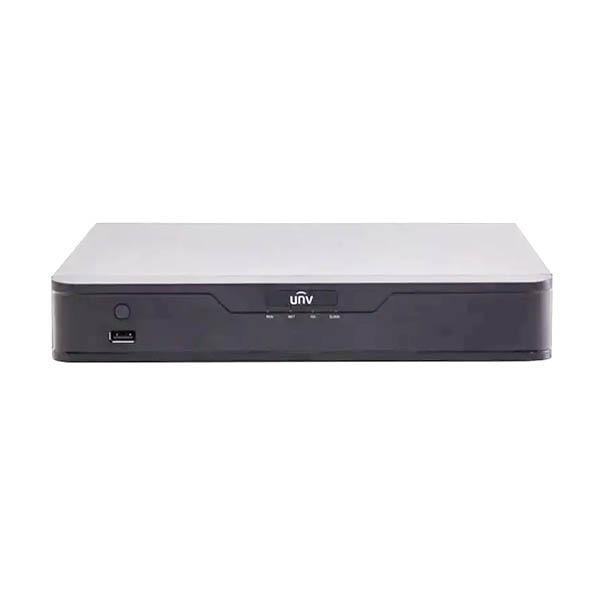

Uniview NVR301-08S3 8 Channel 4K NVR
Key Features
> Model- NVR301-08S3
> 8 channel input
> Incoming BW : 64 Mbps
> Support Ultra 265/H.265/H.264 video formats
> Support ONVIF and RTSP protocols
> Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K resolution
> 1 SATA HDD UP to 8 TB
> Third-party IP cameras supported
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications
| Model | NVR301-04S3 | NVR301-08S3 | NVR301-16S3 |
| Video/Audio Input | |||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Network | |||
| Incoming Bandwidth | 64Mbps | ||
| Outgoing Bandwidth | 48Mbps | ||
| Remote Users | 128 | ||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | ||
| Video/Audio Output | |||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, 3.5mm | ||
| Audio Compression | G.711A, G.711U | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Liveview display | 1/4 | 1/4/6/8/9 | 1/4/6/8/9/16 |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
| Snapshot | |||
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | ||
| Decoding | |||
| Decoding format | Ultra 265/H.265/H.264 | ||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25 |
| Hard Disk | |||
| SATA | 1 SATA interface | ||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | ||
| Smart | |||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | ||
| VCA Search | Face Search, Behavior Search | ||
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-ch | ||
| General Alarm | |||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||
| External Interface | |||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel: 2 x USB2.0 | ||
| RS232 | NA | ||
| RS485 | NA | ||
| Alarm In | NA | ||
| Alarm Out | NA | ||
| General | |||
| Power Supply | 12V DC Power Consumption: ≤5 W (without HDD) | ||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||
| Dimensions (W×D×H) | 260mm × 240mm × 46mm (10.2"×9.4"×1.8 ") | ||
| Weight (without HDD) | ≤0.98kg (2.16 lb) | ||
| Certification | |||
| Certification | CE, FCC, UL, RoHS, WEEE | ||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||
| FCC | Part15 Subpart B, ANSI C63.4 | ||
