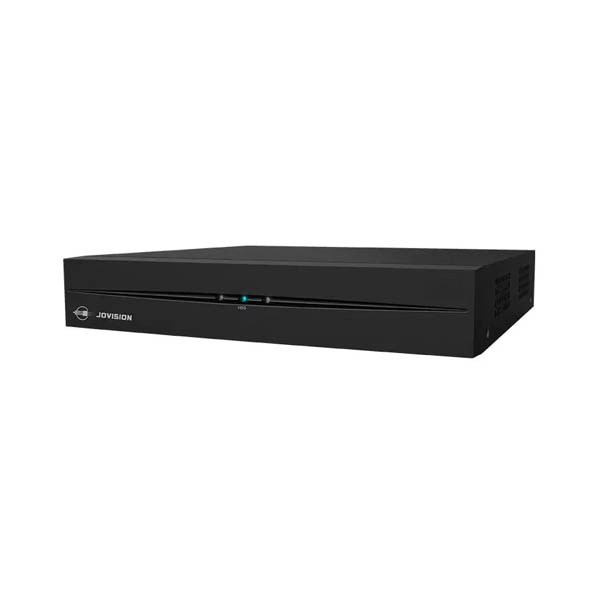

Jovision JVS-ND6610-HD 10 Channel NVR

Video & Audio

IP Camera Input

10 Channel

Audio Input/ Output

1 Channel 3.5mm Jack Output,10 Channel Audio output through HDMI

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768

VGA: 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768

Max Decoding

10CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps

Multi-Screen Display

1/ 4/ 5/ 6/ 7/ 8/ 9/ 10

OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

 Volume, Channel Number

Recording

Compression

H.265/H.264

Resolution

10CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p

Record Mode

Manual, Schedule, Motion Detection

Video Detection & Alarm

Trigger Events

Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer

Video Detection

Motion Detection, No Video Detection

Playback & Backup

Sync Playback

1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p

Search Mode

Channel Number / Recording Type / Date

Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

 Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup Mode

FAT32 USB Device/ Network

Network & Interfaces

Interface

1 RJ45 Port (10/100Mbps)

Network Function

TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE

Smart Phone

Support iOS, Android App

Interoperability

ONVIF 2.4

Storage

SATA

1 SATA Interfaces

Capacity

Up to 10TB

USB

2x USB

General

Power Supply

DC 12V

Consumption

≤10W (Without HDD)

Working Temperature

-10°C~ 55°C

Working Humidity

10% ~ 90%

Dimensions

255x41x195mm

Weight

≤1.0kg (Without HDD)
