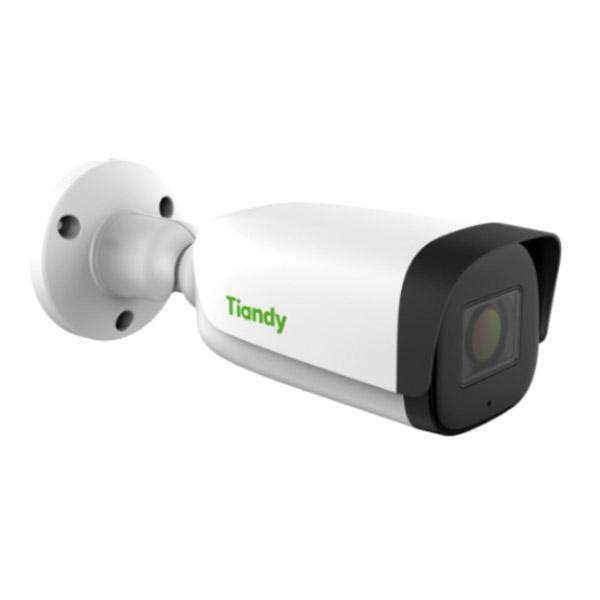

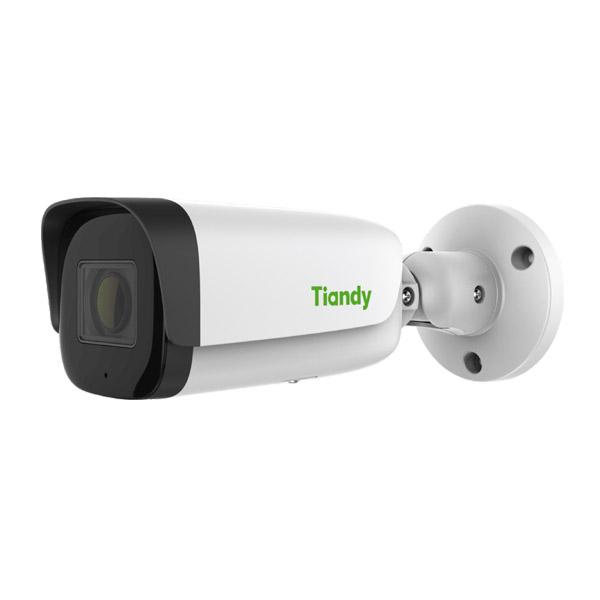

Tiandy TC-C32UN 2MP Motorized IR IP Bullet Audio Camera

Camera

Image Sensor

1/2.8"CMOS

Signal System

PAL/NTSC

Min.   Illumination

Color:   0.02Lux@   (F1.6,ACG   ON),   B/W:0Lux   with   IR

Shutter   Time

1s   to   1/100,000s

Day   &   Night

Dual   IR   Cut Filter   with   Auto   Switch

Wide   Dynamic   Range

Digital   WDR

Angle   Adjustment

Bracket,   pan   0~360°,tilt   0~75°,   roate0~360°

Lens

Lens   Type

Motorized

Focus

2.8-12mm

Lens Mount

14

Aperture

F1.6

Illuminator

IR LEDs

4

IR   Range

Up   to   80m

Wavelength

850nm

White   LEDs/Warmlights

N/A

CompressionStandard

Video   Compression

S+265/H.265/H.264

Video   Bit   Rate

32Kbps~6Mbps

Audio   Compression

G.711/G.711U/ADPCM

Audio   Bit   Rate

8KHz


Max.   Resolution

1920x1080

Main Stream

PAL:   25fps   (19201080,   1280  720,   704  576,   640   480)

NTSC:   30fps(1920   1080,   1280720,   704   480,640   480)

Sub Stream

PAL:   25fps   (704   576,   704   288,   640  360,   352  288)

NTSC:   30fps (704   480,   704   240,640   360,   352   240)

Third Stream

N/A

Image Setting

Saturation,   brightness,   contrast,   sharpness,   adjustable   by   client   software   or   web   browser

Image   Enhancement

BLC/3D   DNR/HLC

ROI

N/A

OSD

16   16,   32   32,   48   48,   adaptable   size,Letters   Such   as   Week,   Date,Time,   Total   3   Regions

Picture Overlay

N/A

Privacy Mask

Yes,   4   regions

Smart   Defog

Yes

Feature

Alarm   Trigger

Disk Full/Disk R/W Error/IP Address Conflict/Mask Alarm

Video   Analytics

N/A

Network

ANR

Yes

Protocols

HTTP,HTTPS,TCP/IP,UDP,UPnP,ICMP,DHCP,DNS,DDNS,Easy DDNS,NTP,QoS,IPv4,SSH,

RTCP,ARP,RTSP

System   Compatibility

onvif Profile S/T/G,CGI,MILSTONE

Remote   Connection

2

Client

Easy7

Mobile Client

EasyLive Plus

Web   Version

IE,Firefox,Edge,Safari,Chrome

Interface

Communication   Interface

1   RJ45   10M/   100Mself   adaptive   Ethernet   port

Audio   I/O

Mic   in

Alarm   I/O

N/A

On-board   storage

Built-inMicroSD card   slot, up to   512 GB
