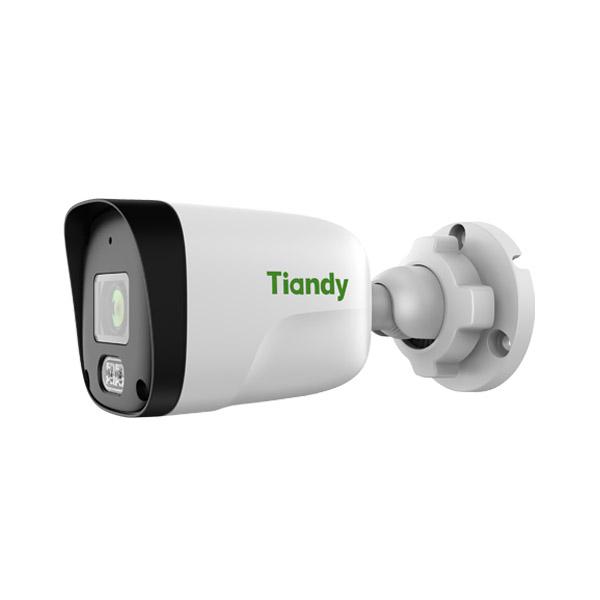

Tiandy AK TC-C321N 2MP IP Bullet Camera

Camera

Image Sensor

1/3"CMOS

Min. Illumination

Color:0.02Lux@(F2.0,AGC ON),B/W:0Lux with IR

Shutter Time

1s~1/100000s

Day&Night

IR-cut filter with auto switch (ICR)

WDR

DWDR

S/N

>47.8dB

Angle Adjustment

0~360°(P); 0~80°(T); 0~360°(R)

Illuminator

IR LEDs

2

IR Distance

30m

Wavelength

850nm

Lens

Lens Type

Fixed focal lens

Focal Length

2.8mm

Lens Mount

M12

Aperture Range

F2.0

Field of View

94.4°(H); 53.2°(V); 108.2°(D)

DORI Distance

Detect:41.48m Observe:16.46m Recognize:8.3m Identify:4.1m

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate

32k~4Mbps

Audio Compression

G.711A/G.711U

Audio  Sampling Rate

8kHz


Max. Resolution

1920×1080@30fps

Main Stream

PAL:25fps(1920×1080, 1280×720, 704×576, 640×480) NTSC:30fps(1920×1080, 1280×720, 704×480, 640×480)

Sub Stream

PAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×360)

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance

OSD

Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48

Privacy Mask

4 black static areas

Defog

Yes

Feature

Alarm Trigger

Motion Detection; IP Address Conflict

Network

Protocols

HTTP; TCP/IP; UDP; ICMP; DHCP; DNS; NTP; IPv4; Telnet; Unicast

System Compatibility

ONVIF Profile S/T; CGI; Milestone

Remote Connection

≤2

Client

Easy7 Smart Client

Interface

Communication Interface

1*RJ-45,10/100 Mbps self-adaptive Ethernet port
