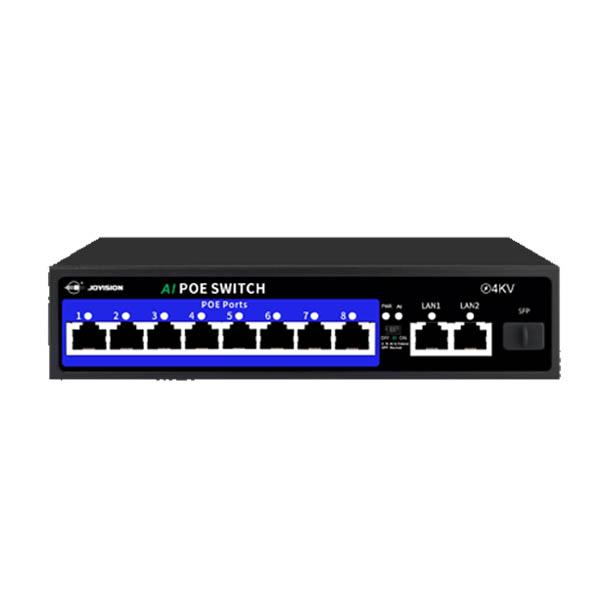

Jovision JVS-S10-8P-120W 10 Port PoE Switch 2 Uplink

1000M Cascade RJ45

2

1.5G standard SFP port

1

Function

Storage and Forwarding

Support

Exchange Content

7.6G

MAC Address

2K

Use Environment

Working temperature: 0 ℃ ~ 40 ℃

Storage temperature: -40 ℃ ~ 70 ℃

Working humidity: 10% ~ 90% RH does not condense

Storage humidity: 5% ~ 90% RH does not condense

PoE Standard

Standard IEEE802.3af/at single port maximum power 30

WSupport overcurrent, overvoltage, short-circuit protection

Support for High Power PD soft start

Support sequential boot

Input Power Supply

AC input 100-250V, standard 100W/120W power supply

Supported Standards & Protocols

IEEE 802.3 Ethernet Media access Control Protocol IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet

IEEE802.3z 1000Base-X SFP interface

IEEE 802.3af implements power supply for Ethernet devices through Ethernet data cable pairs or devices

IEEE 802.3at implements high power supply for Ethernet devices through Ethernet data cable pairs or devices

IEEE 802.3x flow control

System Mode

OFF : Default working mode

ON : AI+ Intelligent long distance transmission

 Data Signaling Rate

Ethernet 10Mbps half-duplex, 20Mbps full duplex

Fast Ethernet 100Mbps half-duplex, 200Mbps full duplex

Gigabit Ethernet 2000Mbs full duplex

Network Medium

1000Base-T: 4 pairs Cat5e or more UTP/STP(≤100m)

100Base-TX: 2 pairs Cat5 or more UTP/STP (≤ 100m)

10Base-TX: 2 pairs Cat5 or more UTP/STP (≤ 250m)

Physical Specification

Product size: 190mmx140mmx43mm (LxWxH)
