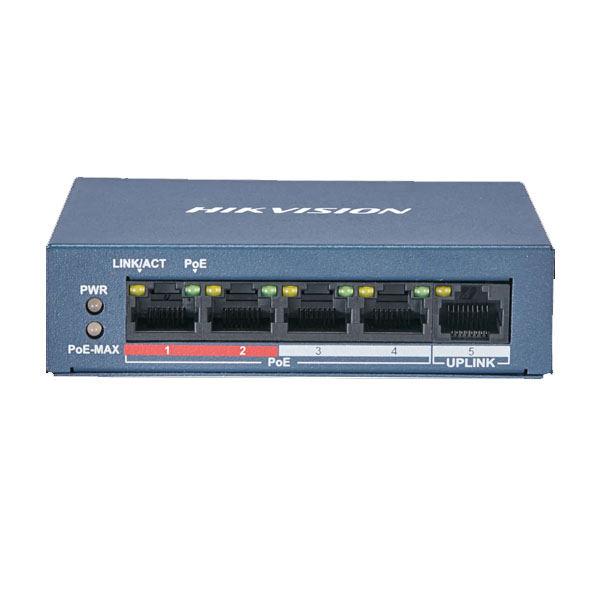

Hikvision DS-3E0105P-E-M 4 Port Unmanaged POE Switch
> Intelligent PoE Management.
> Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
> 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
> 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications
Model
| DS-3E0105P-E/M(B)
| |
Network parameters
| Port number
| 4 × 100 MbpsPoE ports, 1 × 100 Mbps Ethernet port
|
Port type
| RJ45 port, full duplex, MDI/MDI-X adaptive
| |
Standard
| IEEE 802.3, IEEE 802.3u, IEEE802.3x
| |
Forwarding mode
| Store-and-forward switching
| |
Working mode
| Standard mode (default); Extend mode
| |
High priority ports
| Ports 1 to 2
| |
Ports for long-distance transmission
| Ports 1 to 4
| |
MAC address table
| 1 K
| |
Switchingcapacity
| 1 Gbps
| |
Packet forwarding rate
| 0.744 Mpps
| |
Internal cache
| 448 Kbits
| |
PoE power supply
| PoE standard
| IEEE 802.3af, IEEE802.3at
|
PoE power pin
| Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8provide simultaneous power supply
| |
PoE port
| Ports 1 to 4
| |
Max. port power
| 30 W
| |
PoE power budget
| 35 W
| |
Max. power consumption
| 38 W
| |
General
| Shell
| Metal material, fan-free design
|
Gross weight
| 0.48 kg (1.06 lb)
| |
Net weight
| 0.2 kg (0.4 lb)
| |
Dimension(L × H × D)
| 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
| |
Operatingtemperature
| -10 °C to 55 °C (14 °F to 131 °F)
| |
Storage temperature
| -40 °C to 85 °C (-40 °F to 185 °F)
| |
Operating humidity
| 5% to 95%(no condensation)
| |
Storage humidity
| 5% to 95% (no condensation)
| |
Power supply
| 48 VDC, 0.8 A
| |
Power consumption in idle
| 3 W
| |
Approval
|
EMC
| FCC (47 CFR Part15, Subpart B); CE-EMC (EN 55032: 2015,EN
61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024:2010 +A1: 2015);
RCM (AS/NZS CISPR32: 2015); IC (ICES-003: Issue 6, 2016)
|
Safety
| UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009+ Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
| |
Chemistry
| CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach(Regulation (EC) No 1907/2006)
| |
