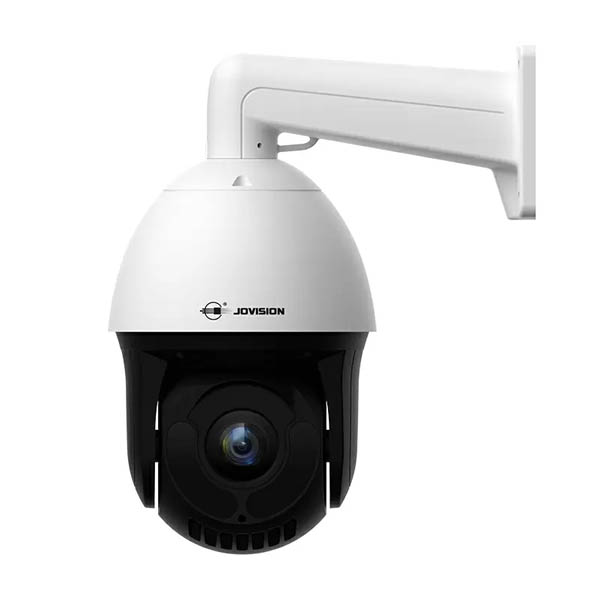

Jovision JVS-N43-Z25 4MP 25x Zoom Starlight AI PTZ Camera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max Resolution

2496x1440

Effective Pixels

4.0 Mega Pixels

Optical Zoom

25x Zoom

Compression Standard

H.264/H.265

Maximum Frame Rate

Up to 25 fps

Bit Rate

267Kbps～8Mbps

Illumination

0 Lux (IR ON)

Focus Control

Auto/ Semi-auto/ Manual

Focus Length

Optical Zoom 25X

Infrared

4 Infrared Lights + 4 Laser Lights

IR Distance

≥120m.

Function

OSD

Support

DWDR

Support

Smart Defog

Support

ROI

Support

Motion Detection

Support

Video Adjust

Supports Contrast, Brightness, Saturation, Sharpness Adjustment

Audio

Support Audio monitoring, Intercom

Image Setting

Mirror, Rotate

Alarm

E-mail, Client

Network Protocols:

HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, CloudSEE.

System Compatibility

ONVIF 2.4

Remote Operation

System, Stream, Alarm , Network,Storage，Management, PTZ Function,Insight

PTZ

Pan/Tilt Range

Pan: 0°～360°; Tilt: 0°～90°

Pan Speed

0°～30°/S

Tilt Speed

0°～20°/S

Manual Speed

High, Middle, Low

Number of Preset

1024

Patrol

Up to 2 Patrols

Scan

Patrol Scan, Pattern Scan, Tilt Scan, Frame Scan, Random Scan

Control

RS232

Communication

Communication Protocol

Pelco-D

Communication Interface

RS232

Baud Rate

1200/2400/4800/9600bps

Interface

Ethernet

1 RJ45 10M / 100M Ethernet

Audio I/O

1CH Audio In

General

Power Supply

DC12V/3.33A

Power Consumption

≤ 25W

Operating Temperature

-20°C ~ +60°C

Operating Humidity

0% - 93% Rh Non-Condensation

Ingress Protection

IP66

Product Dimensions

205x 325X389 (mm)

Product Weight

≤ 2490(g)
