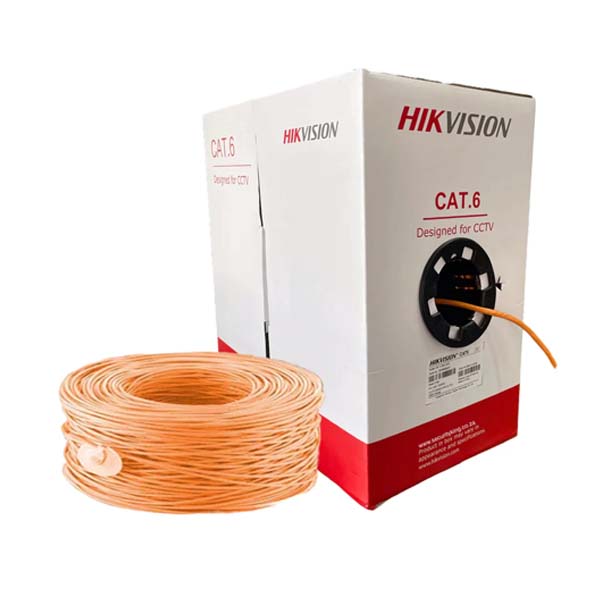

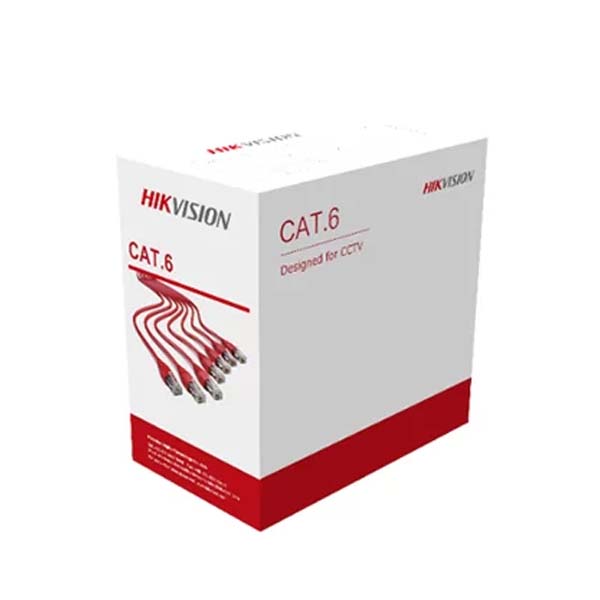

Hikvision DS-1LN6U-SC0 CAT6 UTP Cable (Orange)
Key Features
> Model: DS-1LN6U-SC0
> Category- Cat.6
> 305.0 m (1000 ft) / Carton UTP CAT6
> Core diameter: 0.55mm
> Great PVC flame resistance
> Quality verified by Fluke test
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications
Model
| DS-1LN6U-SC0
| |
Category
| Cat.6
| |
Sheath printing
| HIKVISION4PR 23AWG 75°CU/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy
Tracing Code-HS
| |
Reference standard
| ISO/IEC11801, ANSI/TIA-568-C.2, RoHS2.0
| |
Fire resistance
| No
| |
Conductor
| Material
| Solid-Bare Copper(99.95%)
|
Diameter
| 0.55 ± 0.005 mm,23 AWG
| |
Insulation
| Material
| HDPE
|
Diameter
| 0.98 ± 0.05 mm
| |
Sheath
| Thickness
| 0.50 ± 0.10 mm
|
Diameter
| 6.00 ± 0.30 mm
| |
Material
| PVC
| |
Color
| Orange
| |
Rip-cord
| Yes
| |
Separator
| Yes
| |
Sheath physical properties
|
Before aging
| Tensile strength ≥ 13.5 Mpa
Elongation ≥ 150%
|
Aging period
| 100°C × 24h × 10d
| |
After aging
| Tensilestrength ≥ 12.5Mpa
Elongation ≥ 125%
| |
Cold bend
| -20 ± 2°C × 4h,8 × cable O.D, no visible cracks
| |
Electrical
Characteristics (20°C)
|
1.0-250.0 MHz impedance
| 100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz
|
1.0-250.0 MHz delay skew
| ≤ 45 ns/100 m
| |
DC resistance
| ≤ 9.38Ω/100 m
| |
DC conductor resistance unbalance
| ≤ 5.0%
| |
Package dimension
| 400 mm (W) × 400 mm (H) × 240 mm (D)(15.75" × 15.75" × 9.45")
| |
Weight
| 12.3 ± 0.5kg
| |
Cable length
| (305 ± 1.5) m
| |
Ambient temperature
| -20°C to 75°C (-4°Fto 167°F)
| |
Operating voltage
| 60 V
| |
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
The Hikvision DS-1LN6U-SC0 CAT6 UTP Cable is a high-quality networking cable designed for data transmission. It is a Category 6 cable, which means it supports higher bandwidth and faster data speeds compared to lower-category cables. The cable is compliant with reference standards ISO/IEC11801, ANSI/TIA-568-C. You can do your shopping at the best price on our website or at one of our showrooms.
