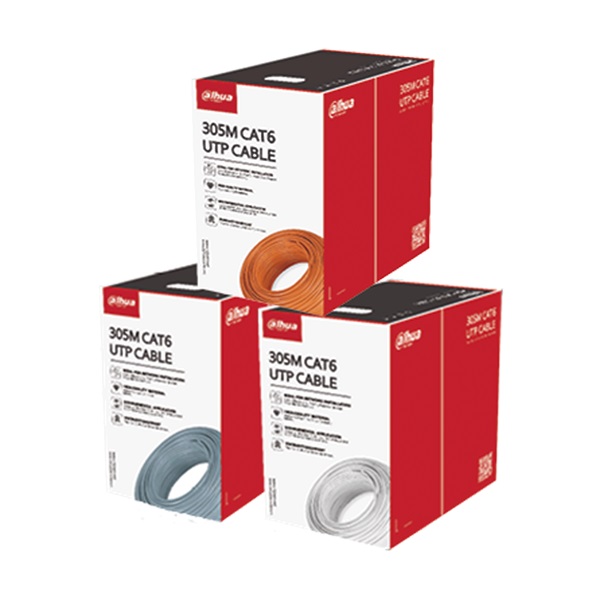

Dahhua PFM920I-6UN-CN UTP CAT6 Copper Cable
Key Features
> Model- PFM920I-6UN-CN
> 305 m (1000 ft)/carton UTP CAT6
> Power over Ethernet, compatible with one cable
> High-purity oxygen-free copper conductor
> Customized PVC outer sheath
> Have certain flame retardant properties
> Meet ANSI TIA 568C.2 and CPR Eca standards
Free Shipping
For all orders over ৳10,000.00
Secure Payment
Guarantee secure payments
Attention
পণ্য অর্ডার করার পূর্বে এশিয়াবিজ টেকনোলজি হেল্পলাইন এ কল করে পণ্যটির বর্তমান অবস্থা , দাম এবং ডেলিভারী সংক্রান্ত হালনাগাদ তথ্য জেনে নেবার জন্য অনুরোধ রইলো
Hotline Order:
Wed - Mon: 10AM - 07PM
01404466166 & 09678221422
Specifications:
Conductor | |
Material | Oxygen free copper (99.95% purity) |
Diameter | 0.53 mm ± 0.02mm（0.02" ± 0.0007") |
American Wire Gauge | 24AWG |
Insulation | |
Material | HDPE |
Diameter | 0.94 mm ± 0.05mm（0.04" ± 0.0020") |
Color (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
Separator | |
Material | PE |
Sheath | |
Material | PVC |
Min. Average Thickness | 0.5 mm(0.02") |
Diameter | 5.8mm ± 0.03 mm(0.23"± 0.0012") |
Color | Grey RAL7046/white/orange |
Electrical | |
Max. DC Resistance of a Single Conductor(1000Hz) | 9.0Ω/100 m |
Unbalanced capacitance to ground | ≤160pF/100m |
Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) |
Cable to Capacitance | ≤5.6nF/100m |
Transmission | |
Characteristic Impedance (4-250Mhz) | 100 Ω± 15Ω |
Mechanical | |
Tensile Strength | Sheath≥13.5 MPa |
Elongation at Break | Sheath≥150%, insulation≥300% |
Installation Bending Radius -20℃, 4h | >8 times of outer cable diameter |
Conductor Elongation at Break | ≥10% |
Environmental | |
Shrinkage of Insulation | ≤5% |
Sheath Tensile Strength and Elongation at Break after Aging | ≥12.5 MPa, ≥125% |
Low Temperature Bending Test | No cracking after the test |
Heat Shock Test | No cracking after the test |
Operating Temperature | –20°C to +75°C (–4°F to 167°F) |
Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), <60% (RH) |
Packaging | |
Cable Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) |
Inner Carton Dimensions | 416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" ×8.66") (L × W × H) |
Packaging Method | 305.0 m (1000.66 ft) a carton |
Net Weight | 11.6±0.6kg(25.57 lb) |
Gross Weight | 12.5±0.6kg(27.55 lb) |
Description
Dahua PFM920I-6UN-CN CAT6 UTP Cable
The Dahua PFM920I-6UN-CN CAT6 UTP cable is a high quality network cable that is suitable for dependable and fast data transfer. This cable is ideal for long-distance installations, with a length of 305 meters per carton. The Dahua PFM920I-6UN-CN CAT6 UTP Cable is built to meet or exceed industry standards for performance and durability. It is made of Oxygen free copper (99.95% purity), and the manufacturing process is meticulously monitored to ensure consistency of quality. This cable supports PoE (Power over Ethernet). The cable's outer sheath is made of a specially designed PVC material that is CE CPR Eca flame retardant class certified. This makes it a safe choice for installations in public buildings and other areas where fire safety is a concern.
BUY Dahua PFM920I-6UN-CN CAT6 UTP Cable from Asiabiz Technology
In Bangladesh, you can get The Dahua PFM920I-6UN-CN CAT6 UTP cable From Asiabiz Technology. We have a large collection of the latest Cables for you to buy. To get yours at the lowest price, order online or visit our "Asiabiz Technology" shop.
#asiabizbd #cccamera #gadgets #utpcable #dahuacable #cat6 #utp
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
The lowest price for Dahhua PFM920I-6UN-CN UTP CAT6 Copper Cable is 12,000Tk. You can Buy it at asiabizbd.com or visit one of our Asiabiz Technology Showrooms to get the best prices.
