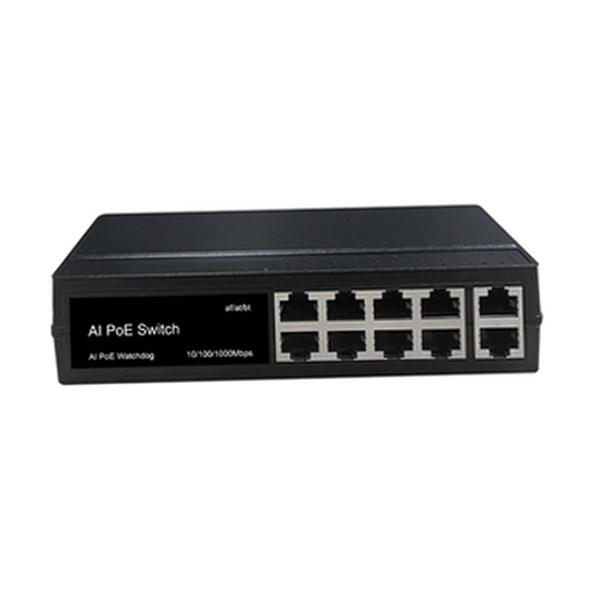

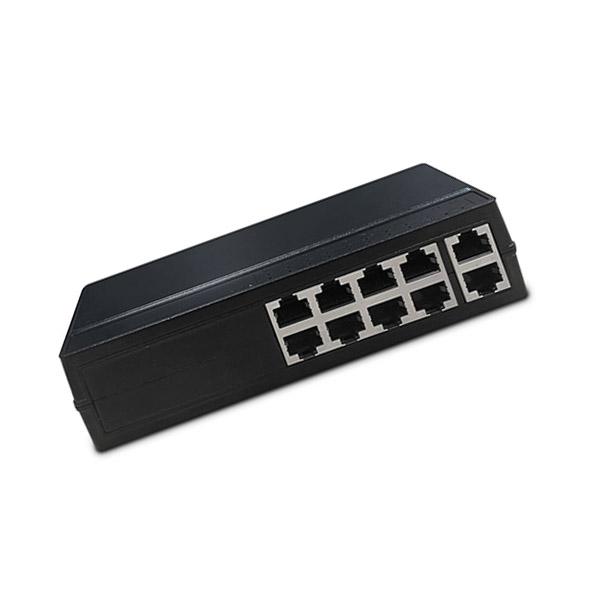

Genata GNT-P1210ES 8-Port PoE Switch 2 Up-Link Gigabit Port

Model

GNT-P1210ES

Ports

PoE (1~6):10/100Mbps PoE ports (RJ45)

PoE   (7~8):10/100Mbps   PoE   ports   (RJ45),Support   bt   60W   HighPower LAN(1~2):10/100/1000Mbps uplink ports (RJ45)

Transmission   Rate

2000Mbps   FullDuplex;   10   or   100   or   1000   MbpsHalf Duplex

Transmission   Distance

1~2   ports 250m   10Mbps /   3~8 ports   130m 100Mbps

Performance Specification

Bandwidth:5.6Gbps

Network   Latency   (10   to   1000Mbps):   ≦16μs   (usethe   64byte   package   size)

MACaddress   table: 8K

The   FrameFilter   &   Transmission   Rate:   14800pps   the   most   for   10M   port, 148800pps   the most   for 100M port;1488000pps   the most   for 1000M port

Networking   Standard

IEEE   802.3i   10BASE-T/IEEE   802.3u100BASE-TX

IEEE   802.3ab   1000BASE-T

IEEE 802.3xFlowControl

IEEE 802.3af/at/bt   Power over Ethernet

Power Support

Power   Input:   AC 90~240V   Total≤120W

PoEWatchdog:   Port   1~8

Power Output: PoE1~6Port:1/2(+52V),3/6(GND)≤30W PoE7~8Port:1245(+53V),3678(GND)   compatible1/2(+52V),3/6(GND)≤60W

Protection   Level

Lightning   Protection:6KV,   Per:   IEC61000-4-5 ESD Protection:8KV, Per: IEC61000-4-2

Physical   Specifications

Size(L*W*H):   163mm*83mm*40mm;Weight:   0.5KG

Working Environment

Operating   Temperature:   -30℃~60℃

Storage   Temperature:   -40℃~70℃

Operating   Humidity:   10%~90%   non-condensing

Storage   Humidity:   5%~90%   non-condensing

Certification

CE Mark

FCC   Part15,Class   B

RoHS 2.0

VCCI   ClassBEN55022   (CISPR22)

Warranty

Whole   Device:   1   year

Package   Content

ACPower   Cable,Installation   Manual
