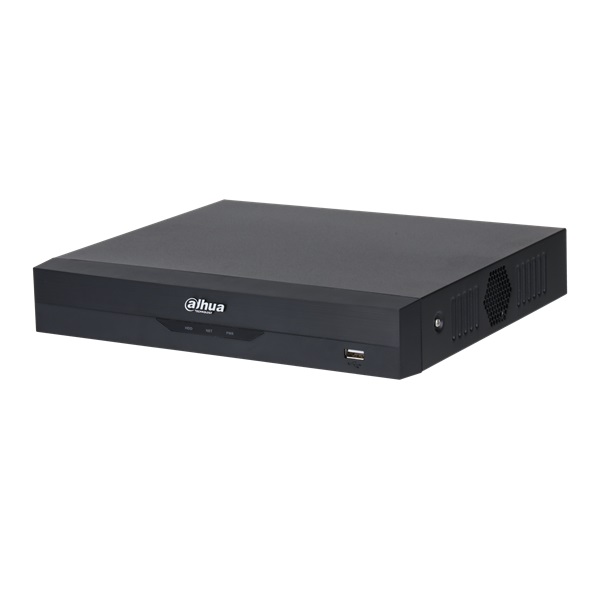

Dahua XVR5104HS-I3 4Channel 5MP Supports Digital Video Recorder

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS rules for each channel General Model: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

1 channel (up to 8 face images/s each channel) )

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

1 channel

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps. 2. TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps. 3. AHD: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps.

IP Camera Input

Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS、SMD、Face) will be disabled.

Encoding Capacity

Main stream: 5MP Mode: All channel 5MP@(1-6fps) 5M-N Mode: All channel 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps) Sub stream: D1, CIF@(1–15fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Samsung

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

IOS; Android

Interoperability

ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; Firefox; IE 9 or later

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

Up to 4 channels

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm

General Alarm

Motion detection; alarm box; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log, preset; email

Ports

Audio Input

1-channel RCA 4-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SATA port, up to 16TB capacity. The maximum HDD capacity varies with environment temperature.

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 1.5A

Power Consumption

<5 W (without HDD)

Net Weight

0.84 kg (1.85 lb)

Gross Weight

1.37 kg (3.02 lb)

Product Dimensions

260.0 mm × 237.8 mm × 47.6 mm (10.24'' × 9.36'' × 1.87'') (W × D × H)

Packaging Dimensions

333.0 mm × 89.0 mm × 315.0 mm (13.11'' × 3.50'' × 12.40'') (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

≤93% (RH)

Installation

Rack or desktop

Certifications

CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
