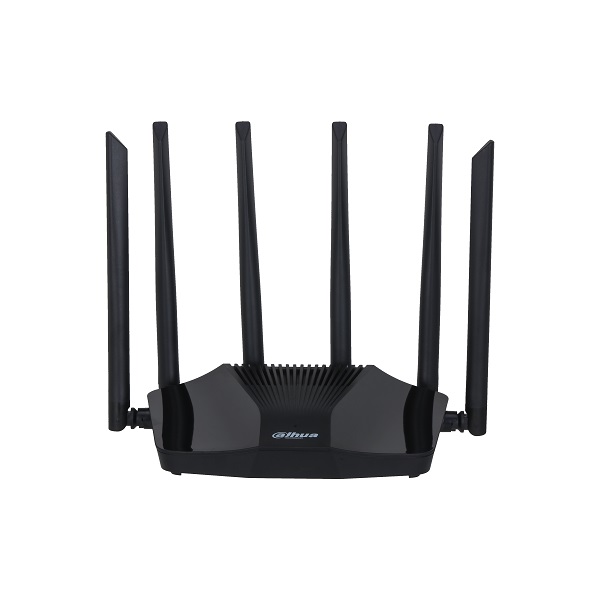

Dahua WR5210-IDC Wireless Router

Function

Encryption Type

WPA-PSK; WPA2-PSK

Network Mode

Router

Configuration Management

Web configuration

Firmware Update

Web update

Wireless Certification

CE; FCC

Power Consumption

< 12 W

Security Mechanism

IP/MAC filtering, hidden network name; WPA/WPA2, hidden SSID

Internet Protocol

HTTP

NAT

Port mapping

Software Functions

WISP mode; Guest network; Parental control; One-click speed testing; Troubleshooting

Hardware

Wireless Standard

IEEE802.11 a/n/ac; IEEE802.11 b/g/n

Reset Button

Reset to factory settings

WAN Port

1 × 10 /100 /1000 Mbps RJ-45

WAN Port Connection Mode

Static IP; DHCP; PPPoE

LAN Port

3 × 10 /100 /1000 Mbps RJ-45

Indicator

Red: Network disconnected; Blue: Network connected

Performance

Working Frequency

125 MHz

Modulation Type

OFDM

Antenna

External omnidirectional antenna

Max. Output Power

8.6 W

Transmission Distance

150 m (492.13 ft) (open areas)

Air Interface Rate

300 Mbps; 867 Mbps

Optimal Transmission Distance

5 m–10 m (16.40 ft–32.81 ft)

MAC Table Size

1K

General

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Operating Humidity

5%–95%

Product Dimensions

200.0 mm × 124.4 mm × 28.0 mm (7.9"× 4.9" × 1.1")

Gross Weight

0.89 kg (2.0 lb)

Net Weight

0.42 kg (0.9 lb)

Packing Dimensions

420.0 mm × 297.0 mm × 80.0 mm (16.5" × 11.7" × 3.1")

RAM

128M

Power Input

12 V DC, 1A
