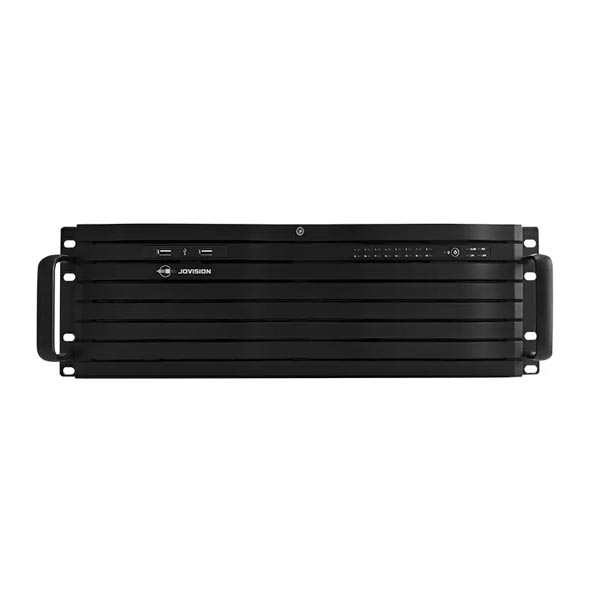

Jovision JVS-ND92128-HV 128 Channel NVR

Video & Audio

IP Camera Input

128 Channel

Audio Input/ Output

1 Channel RCA Output, 1 Channel RCA Input128 Channel Audio output

 through HDMI

Display

Interface

2 HDMI, 2 VGA

Video Output

HDMI: 3840x2160/ 2560x1440/ 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768

VGA: 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768

Max Decoding

128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps

Multi-Screen Display

1/ 4/ 5/ 6 up to 64x2

OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

 Volume, Channel Number

Recording

Compression

H.265/H.264

Resolution

128CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p

Record Mode

Manual, Schedule, Motion Detection

Video Detection & Alarm

Trigger Events

Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer

Video Detection

Motion Detection, No Video Detection

Alarm-In & Out

16CH Alarm Input; 4CH Alarm Output

Playback & Backup

Sync Playback

9CH 5.0MP @20fps/ 11CH 4.0MP/ 13CH 3.0MP/16CH 1080p

Search Mode

Channel Number / Recording Type / Date

Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

 Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup Mode

FAT32/ NTFS/ exFAT USB Device / Network

Network & Interfaces

Network Interface

2x RJ45 (10/100/1000Mbps)

Network Function

TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE

Smart Phone

Support iOS, Android App

Interoperability

ONVIF 2.4

PTZ Interface

RS485

Storage

SATA

16 SATA Interface

Capacity

Up to 10TB

USB

2x USB2.0, 1x USB3.0

General

Power Supply

100~240V/ 6~3A/ 50~60HZ

Consumption

≤10W (Without HDD)

Working Temperature

-10°C ~ 55°C

Working Humidity

10% ~ 90%

Dimensions

530x144x483mm

Weight

≤6.2Kg (Without HDD)
