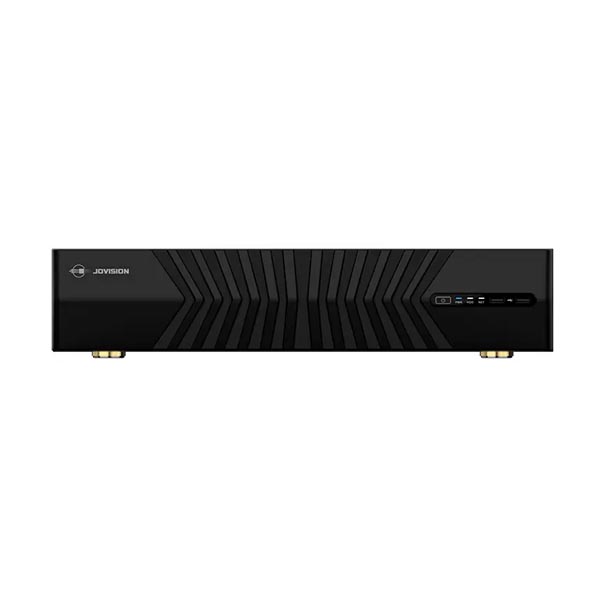

Jovision JVS-ND9164-HZ 64 Channel NVR

Video & Audio

IP Camera Input

64 Channel

Audio Input/ Output

1 Channel RCA Output, 1 Channel RCA Input64 Channel Audio output through HDMI

Display

Interface

1 HDMI, 1 VGA

Video Output

HDMI: 3840x2160/ 2560x1440/ 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768

VGA: 1920x1080/ 1440x900/ 1280x1024/ 1280x720/ 1024x768

Max Decoding

64CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps8CH 8.0MP

Multi-Screen Display

1/ 4/ 5/ 6 up to 64

OSD

Camera Name & Time, Recording, Alarm Detecting, Remote connection,

 Volume, Channel Number

Recording

Compression

H.265/H.264

Resolution

64CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p

Record Mode

Manual, Schedule, Motion Detection

Video Detection & Alarm

Trigger Events

Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer

Video Detection

Motion Detection, No Video Detection

Alarm-In & Out

16CH Alarm Input; 4CH Alarm Output

Playback & Backup

Sync Playback

9CH 5.0MP @20fps/ 11CH 4.0MP/ 13CH 3.0MP/16CH 1080p

Search Mode

Channel Number / Recording Type / Date

Playback Function

Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup Mode

FAT32/ NTFS/ exFAT USB Device / Network

Network & Interfaces

Network Interface

2x RJ45 (10/100/1000Mbps)

Network Function

TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE

Smart Phone

Support iOS, Android App

Interoperability

ONVIF 2.4

PTZ Interface

RS485

Storage

SATA

8 SATA Interface

Capacity

Up to 10TB

USB

2x USB2.0, 1x USB3.0

General

Power Supply

ATX

Consumption

≤30 W (Without HDD)

Working Temperature

-10°C ~ 55°C

Working Humidity

10% ~ 90%

Dimensions

445x90.5x430mm

Weight

≤ 8Kg (Without HDD)
