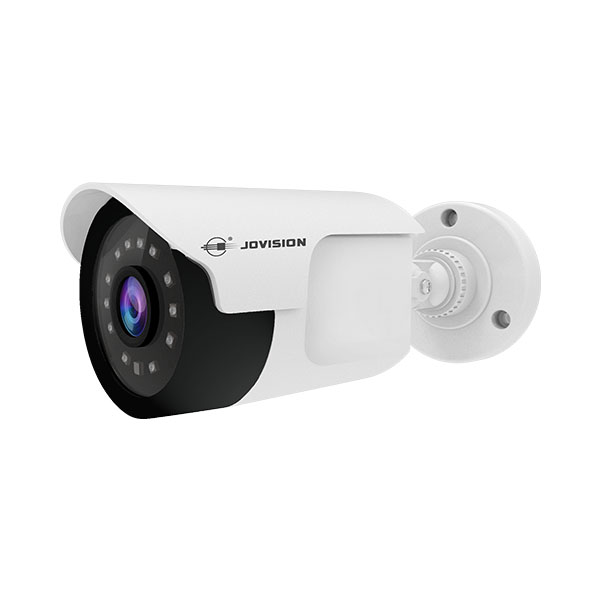

Jovision JVS-N913-YWC 3MP Bullet IP Camera

Video

Image Sensor

1/ 2.9” CMOS

Max Resolution

2304x1296

Effective Pixels

3.0MP

Compression Standard

H.265 / H.264

Maximum Frame Rate

2304x1296@25fps

SNR(dB)

52dB

Bit Rate

256Kbps～8Mbps

Illumination

0Lux (IR ON)

Lens

Lens

4mm

Viewing Angle

H: 78.5°, V: 42.8°, D:92.6°

IR-LEDs

14µ x 18 LEDs

IR-Distance

Up to 25 Meters

Function

Motion Detection

Support

Email Alert

Support

Day& Night

Support

Recording

Support (NVR, Windows PC, Smartphone)

DHCP

Support

FTP

Not Supported

Pan/Tilt

Not Supported

SD-Card

Not Supported

Privacy Mask

Support up to 8 areas

Exposure Control

Support

Image Adjustment

Support

Auto. White Balance

Support

Image Rotation

Support (Mirror/Flip)

Network

Ethernet

10M/100M Ethernet, RJ45 Port

Protocols

HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS

Stream

2x Streams

Wi-Fi

Not Supported

LAN

Support

ONVIF

ONVIF 2.4

User

Up to 13 Users

Browser

IE8+, Chrome18+ ~ 42-

Smart Phone

iOS/Android

General

Dimensions(W*H*D)

Φ70*165.1mm

Weights

230g

Material

Plastic

Working Temperature

-20°C～60°C

Humidity

RH 10%～90%

Power Supply

DC12V

Consumption

Day ≦3W Night ≦ 6W

Waterproof

IP66
