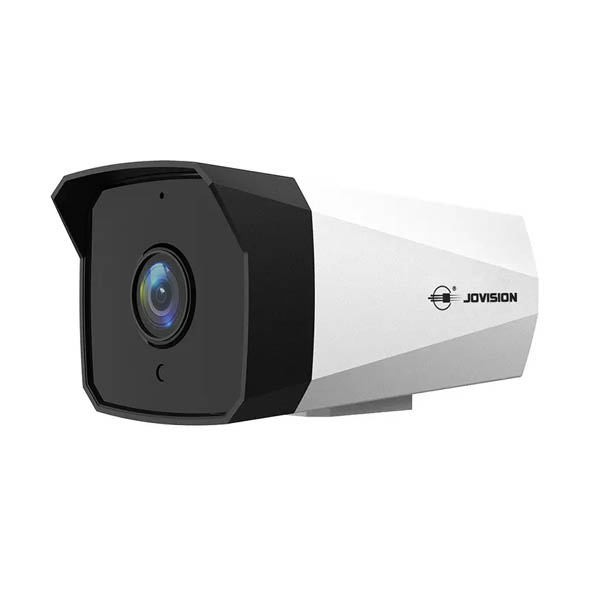

Jovision JVS-N913-K1-PE,3MP Full Clour Audio PoE IP Camera

Video

Image Sensor

1/2.9" CMOS Sensor

Max Resolution

2304x1296

Effective Pixels

3.0MP

Compression Standard

H.265/H.264

Frame Rate

25fps

Bit Rate

256Kbps～8Mbps

SNR (dB)

52dB

Min. Illumination

0Lux (IR ON)

Lens

Lens

4mm,M12

FOV

H: 78.5°, V: 42.8° D:92.6°

IR-LEDs

28µ x 4 LEDs

IR-Distance

Up to 20 Meters

Function

Exposure Control

Support

White Balance

Auto

Image Enhancement

BLC/HLC/3D DNR/Defog

Advanced OSD

Support OSD large font function, OSD and time to set the position separately

Privacy Mask

Support 8 Rectangle Areas

Motion Detection

Support

Image Setting

Rotate, Saturation, Brightness, Contrast, Sharpness

Day and night function

Day and night automatic switching

Privacy Mask

Support up 8 areas

Intelligent Analysis

Not Support

Alarm Method

 Email Alarm,

Remote Operation

System , Audio and video , Image , Alarm , Network management

Expansion Interface

MIC Audio Input

Network

Ethernet

10M / 100M Ethernet ，1 RJ45

Stream

2x Streams

Protocols

HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS

ONVIF

ONVIF 2.4

Network transmission

CloudSEE 2.0

Browser

IE8+, Chrome18+, Firefox5.0+, Safari5.02+

User

Up to 13 Users

App

Support iOS/Android

General

Power Supply

DC12V or PoE

Power Consumption

<3W (During day); <6W (At night with IR)

Working Temperature

-20°C ~ 60°C

Working Humidity

10% ~ 90% Rh

Material

 Plastic

Dimensions (WxHxD)

178*88*85.7(mm)

Weight

170g

Waterproof

IP67
