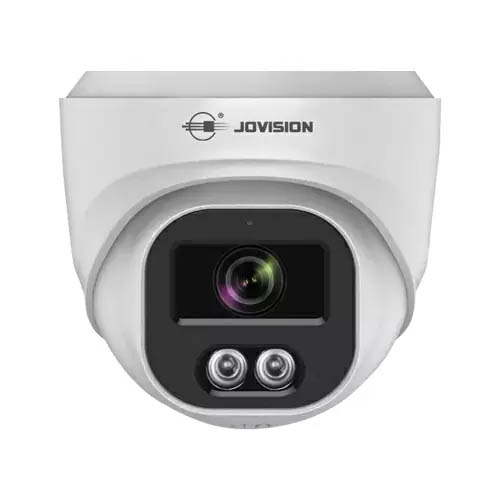

Jovision JVS-N430K-SDL 8MP(4K) Metal Full Color Dom Network Camera

Image Sensor

1/3” CMOS

Max Resolution

3840x2160

Effective Pixels

8MP

Compression Standard

H.265/H.264

Frame Rate

15 fps

Bit Rate

682Kbps～5461Kbps

SNR (dB)

52dB

Min. Illumination

0Lux   (IR ON)

Lens

Lens

4mm,M12

FOV

H:   78.5°, V: 42.8° D: 92.6°

IR-LEDs

28µx1 LED

IR-Distance

Up to 40 Meters

Function

Exposure Control

Support

White Balance

Auto

Image Enhancement

BLC/HLC

Privacy Mask

Support 4 Rectangle Areas

Image Setting

Rotate, Saturation, Brightness, Contrast, Sharpness

Day and night   function

Day And Night Automatic Switching

Intelligent   Analysis

Support Region Intrusion, Line Crossing, Human   Detection

Alarm Method

Email Alarm

Remote Operation

System, Stream, Alarm, Network Management

Expansion   Interface

N/A

Network

Ethernet

10M/100M Ethernet ,1 RJ45

Stream

2x   Streams

Protocols

TCP/IP,RTSP,RTP,HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP

ONVIF

ONVIF   2.4

Network Transmission

CloudSEE 2.0

Browser

 IE8.0 And Above   (Device Embedded Web Server), Edge,Chrome,Safari Browser Browsing

User

Up   to 13 Users

General

Power Supply

DC12V or PoE

Power Consumption

<3W   (During Day); <6W (At Night With IR)

Working Temperature

-20°C ~ 60°C

Working Humidity

0% ~ 90% Rh

Material

Metal

Dimensions (WxHxD)

Φ96x93mm

Weight

300g

Waterproof

IP66
