Key Features

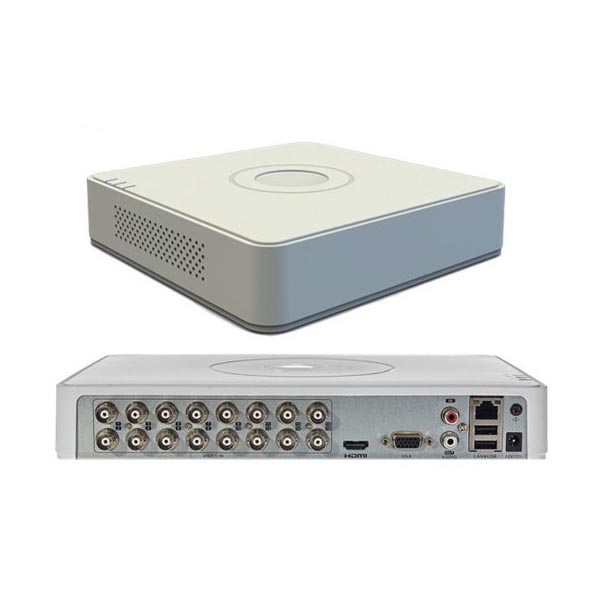

> Model: Hikvision DS-7116HGHI-K1
> Up to 18-ch IP camera inputs (up to 5 MP)
> Type 16 Channel DVR
> Up to 1080p Lite@15 fps encoding capability
> 5 signals input adaptively
> human and vehicle targets classification of Motion Detection 2.0
> Audio via coaxial cable
Wed - Mon: 10AM - 07PM
Specifications:
Product Type | Digital Video Recorder |
Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For standard definition stream access: WD1/4CIF/VGA/CIF |
Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
Connectivity | SATA : 1, SATA interface ; Capacity : Up to 10 TB capacity for each disk ; USB Interface : 2 × USB 2.0 |
Network Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface ; Total Bandwidth : 96 Mbps ; Remote Connection : 128 |
Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Input | Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection ; HDTVI Input : 1080p25, 1080p30, 720p25, 720p30 ; AHD Input : 1080p25, 1080p30, 720p25, 720p30 ; HDCVI Input : 1080p25, 1080p30, 720p25, 720p30 CVBS Input : PAL/NTSC |
Output | HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz ; VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz ;Video Output Mode : HDMI/VGA simultaneous output Audio Input : 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable ; Audio Output : 1-ch, RCA (Linear, 1 KΩ) ; Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Synchronous Playback16-ch |
Power | 12 VDC, 1.6 A |
Power Consumption | ≤ 7 W (without HDD) |
Environment | Working Temperature : -10 °C to 55 °C (14 °F to 131 °F) ; Working Humidity : 10% to 90% |
Dimension | (W × D × H)285 × 210 × 45 mm |
Weight | ≤ 1.8 kg (without HDD, 4.0 lb.) |
