Key Features

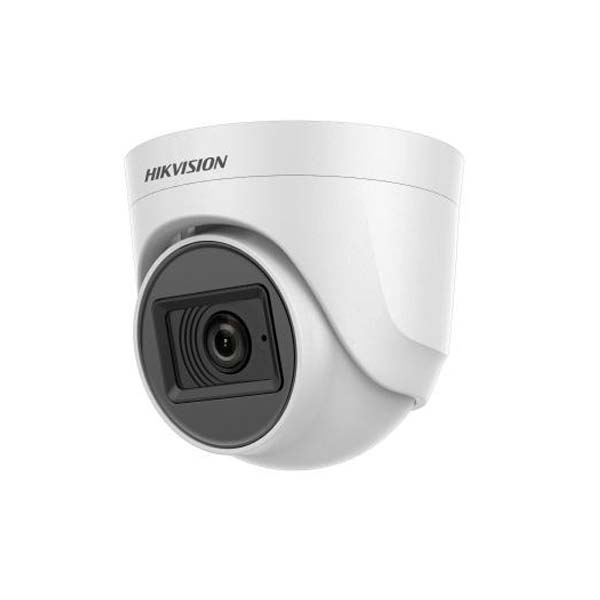

> Model: DS-2CE76D0T-ITPFS
> EXIR 2.0: advanced infrared technology
> 2MP coaxial audio camera
> Transmits audio over the coaxial cable
> 20m IR distance, 4 signals switchable
> EXIR 2.0: advanced infrared with 20 m IR distance
> 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Wed - Mon: 10AM - 07PM
General | ||
---|---|---|
Dimensions | Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″) | |
Weight | Approx. 140.5 g (0.31 lb.) | |
Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° | |
Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) | |
Power Supply | 12 VDC ± 25% | |
Power Consumption | Max. 2.7 W | |
Camera | ||
Image Sensor | 2 MP CMOS | |
Electronic Shutter Speed | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s | |
Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
IR Distance | 20 m | |
Lens | ||
Focal Length | 2.8 mm, 3.6 mm, 6 mm fixed focal lens | |
Video | ||
Resolution | 1920 × 1080 resolution | |
Frame Rate | TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC | |
Video Output | Video OutputSwitchable TVI/AHD/CVI/CVBS | |
Day/Night | ICR | |
BLC Mode | Yes | |
Noise Reduction | 2D DNR | |
Interface | ||
Audio Interface | Audio over coaxial cable, built-in mic | |
Warranty | ||
Warranty | 01 year warranty |
