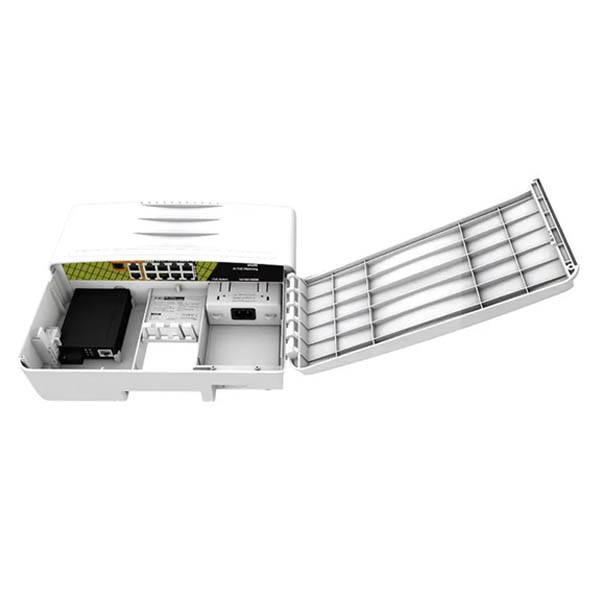

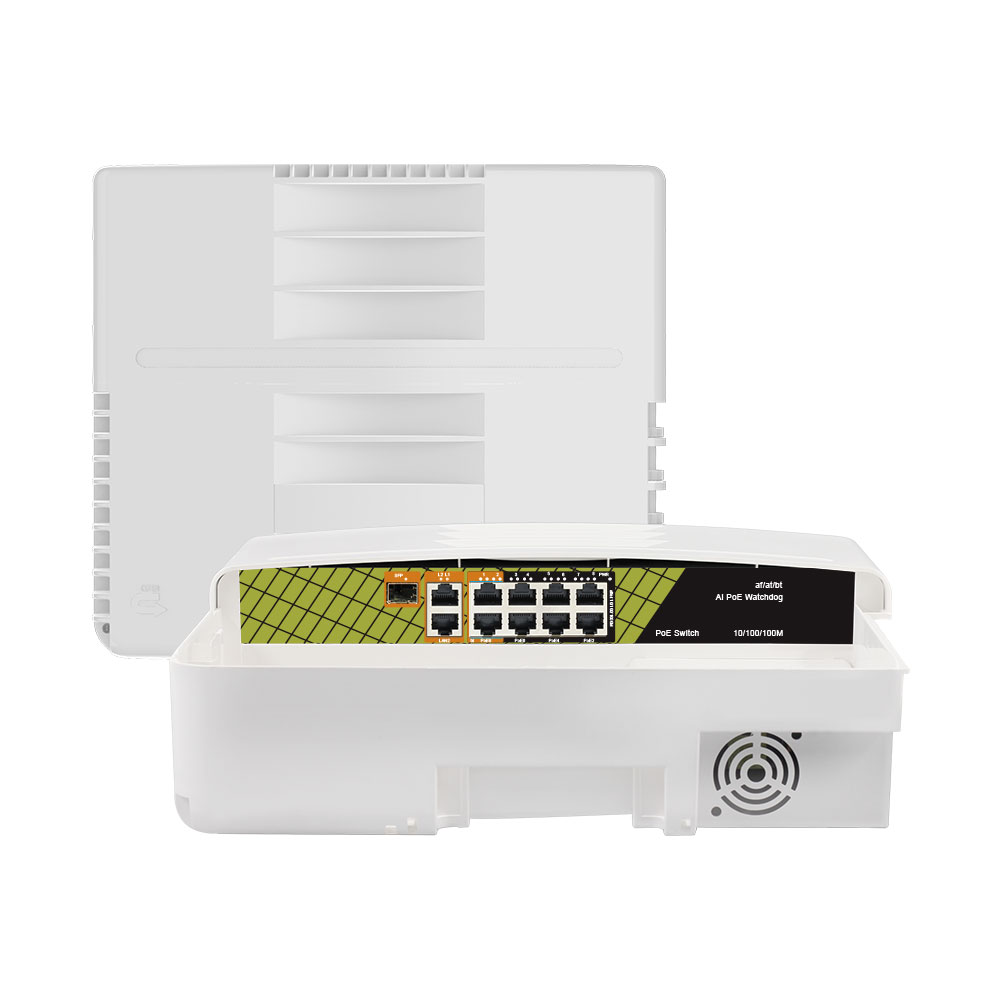

Geneta GNT-P4804F6 OEM Outdoor Gigabit Hi-PoE Waterproof 8 Port Switch

Network port

PoE (1~8) Orange port is Gigabit port

up-Link (7~8) and L1, L2, SFP

Transmission

Rate

2000Mbps Full Duplex; 10 or 100 or 1000Mbps Half Duplex

Network Interface: 10BASE-T or 100BASE-TX RJ45 port of Ethernet

Performance &

Specification

Bandwidth: 11.2 Gbps

Network  Latency(10 to 1000Mbps): 20μs  (use the 64 byte packge size)

MAC address table: 8K

The Frame Filter & Transmission Rate: 14800pps the most for 10M port, 1488000pps the most for 1000M port

Networking

Standard

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3xFlowControl

IEEE 802.3af/at/bt Power over Ethernet

PoE Core Of Power Cable

Default: 1/2(+), 3/6(-); 1245(+),3678(-);

PWR Light

PWR Light no extinguish

Power Support

Power input:AC 110~220V 120W,Power output: PoE1~6

Port:1/2(+52V),3/6(GND)

PoE7~8Port:1245(+53V),3678(GND) compatible 1/2(+52V),3/6(GND)

Physical Specifications

Size(L*W*H)

430mm*180mm*45mm

Working

Environment

Operating Temperature: -10℃ ~55℃ ( -14°~131℉)

Storage Temperature: -40℃ ~70℃ ( -104°~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Electromagnetic

Compatibility

CE mark

FCCPart15,Class B

VCCI ClassBEN55022 (CISPR 22)

C-Tick

Warranthy

Whole machine: 1 year

Package Content

AC Power Cable,Installation Manual
