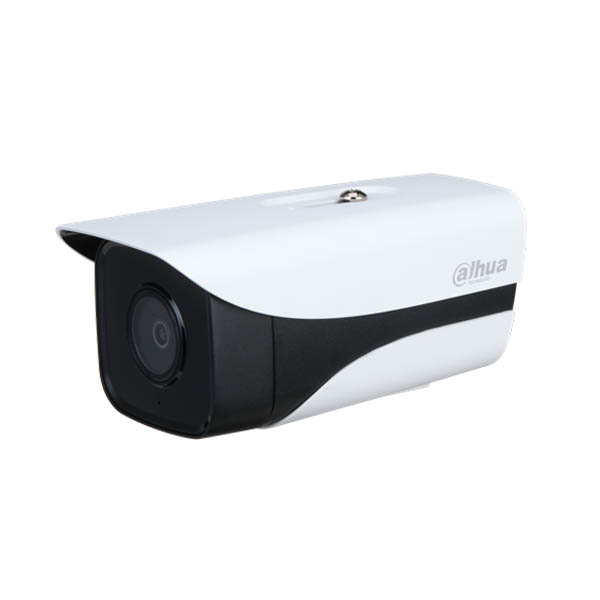

Dahua IPC-HFW1230M-A-I2-B-S5 2MP IP Bullet Camera

Camera

Image Sensor

1/2.8” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

64MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.01 Lux @F2.0


S/N Ratio

More than 56dB

IR Distance

3.6 mm: 30 m (98.4 ft)

6 mm: 50 m (164.0 ft)


8 mm: 80 m (262.4 ft)


IR On/Off Control

Auto/ Manual

IR LEDs

2


Lens

Lens Type

Fixed

Mount Type

M12


Focal Length

2.8 mm


3.6 mm

Max. Aperture

3.6 mm: F2.0

6 mm: F2.0

8 mm: F2.0

Angle of View

3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°


6 mm: Horizontal: 53°; Vertical: 30°; Diagonal: 60°


8 mm: Horizontal: 40°; Vertical: 22°; Diagonal: 46°


Focus Control

Fixed

Close Focus Distance

3.6 mm: 0.8 m (2.6 ft)


6 mm: 2.2 m (7.2 ft)


8 mm: 3.5 m (11.5 ft)


DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

49.7 m (163.1 ft)

19.9 m (65.3 ft)


9.9 m (32.5 ft)


6 mm


8 mm


82.8 m (271.7 ft)


110.3 m (361.9 ft)


33.1 m (108.6 ft)


44.1 m (144.7 ft)


16.6 m (54.5 ft)


22.1 m (72.5 ft)


8.3 m (27.2 ft)


11.0 m (36.1 ft)


PTZ

Pan/Tilt Range

N/A

Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

IVS

NA


Video

Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)


Smart Codec

Smart H.265+/Smart H.264+


Streaming Capability

2 Streams

Resolution

Frame Rate

Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)


Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 kbps–6144 kbps


H.265: 12 kbps–6400 kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower


Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

Built-in MIC


G.711A; G.711Mu; G.726; PCM

Yes


Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;

TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

12V DC/PoE (802.3af)


Power Consumption

Basic power consumption: 1.5W (12V DC); 2.3W (PoE) Max. power consumption (ICR + H.265 + IR intensity): 5.1W (12V DC); 6.4W (PoE)


Environmental

Operating Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

194 mm × 96 mm × 89 mm (7.6" × 3.8" × 3.5")


Net Weight

0.64 kg (1.4 lb)


Gross Weight

0.78 kg (1.7 lb)
