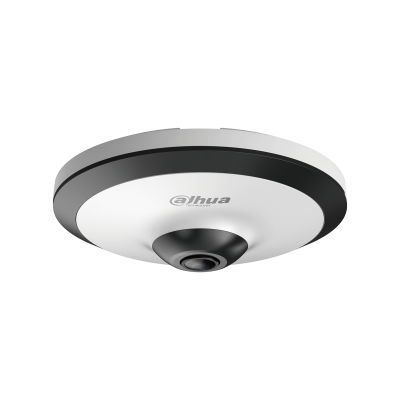

Dahua DH-HAC-EW2501P 5MP HDCVI IR-Fisheye Camera

Camera

Image Sensor

1/2.8" 5MP CMOS

Effective Pixels

2592(H)×1944(V),5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Minimum Illumination

0.005Lux/F2.0 (Color), 30IRE,0lux IR on

S/N Ratio

More than 65dB

IR Distance

10m

IR On/Off Control

Auto (ICR)/Color/B/W

IR LEDs

3

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

1.4mm

Max Aperture

F2.0

Angle of View

H: 180°, V:180°

Focus Control

N/A

Close Focus Distance

0.2m(7.87'')

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m

(8px/ft)

28m(92ft)

Observe

63px/m

(19px/ft)

12m(37ft)

Recognize

125px/m

(38px/ft)

6m(18ft)

Identify

250ppm

(76px/ft)

3m(9ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: NA

Tilt: NA

Rotation: NA

Video

Resolution

5MP (2592×1944)

Frame Rate

20fps@5MP,25/30fps@4MP

Video Output

1-channel BNC high definition video output

Day/Night

Auto (Electronic) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio

Built-in mic

Eelectrical

Power Supply

DC12V ±30%

Power Consumption

7.3W (IR ON)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

N/A

Construction

Casing

Aluminium+ Plastic

Dimensions

Φ126.2mm x 40.6mm(Φ4.97"x 1.6")

Net Weight

0.24kg (0.53lb)

Gross Weight

0.42kg (0.93lb)
